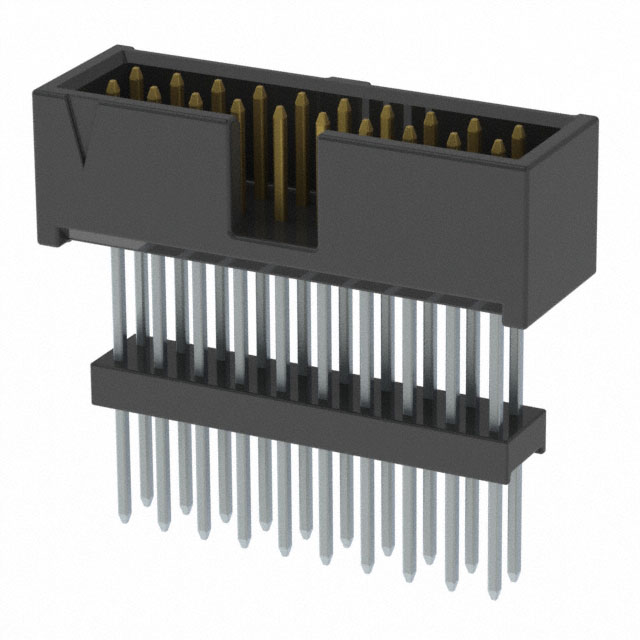

ZSS-110-05-L-D-750

Active

Samtec Inc.

CONN HDR .100" 20POS

ZSS-110-05-L-D-750

Active

Samtec Inc.

CONN HDR .100" 20POS

Description Specifications Series Pricing CAD Documents

Description

General part information

ZSS-110 Series

Headers & Wire Housings .100" Shrouded Elevated Terminal Strip

Technical Specifications

Parameters and characteristics for this part

Specification	ZSS-110-05-L-D-750

Connector Type	Header, Elevated
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 µin
Contact Length - Mating	0.25 in
Contact Length - Post	0.28 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.75 in
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Overall Contact Length	1.03 in
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board, Board or Cable
Termination	Solder

ZSS-110 Series

Headers & Wire Housings .100" Shrouded Elevated Terminal Strip

...

Part	Number of Positions	Insulation Color	Material Flammability Rating	Contact Material	Termination	Overall Contact Length	Number of Rows	Contact Finish - Mating	Contact Finish - Post	Shrouding	Row Spacing - Mating	Contact Type	Contact Length - Post	Number of Positions Loaded	Contact Length - Mating	Mounting Type	Pitch - Mating	Features	Style	Connector Type	Contact Finish Thickness - Mating	Fastening Type	Current Rating	Insulation Height	Operating Temperature (Max)	Operating Temperature (Min)	Contact Shape	Insulation Material	Number of Positions Loaded
Samtec Inc. ZSS-110-06-S-D-950	20	Black	UL94 V-0	Phosphor Bronze	Solder	1.13 in	2	Gold	Tin	Shrouded - 4 Wall	0.1 in	Male Pin	0.18 in	All	0.25 in	Through Hole	0.1 in	Keying Slot	Board Board or Cable	Elevated Header	30 µin	Push-Pull	3 A	0.95 in	125 °C	-55 °C	Square	Glass Filled Polyester
Samtec Inc. ZSS-110-05-L-D-750	20	Black	UL94 V-0	Phosphor Bronze	Solder	1.03 in	2	Gold	Tin	Shrouded - 4 Wall	0.1 in	Male Pin	0.28 in	All	0.25 in	Through Hole	0.1 in	Keying Slot	Board Board or Cable	Elevated Header	10 µin	Push-Pull	3 A	0.75 in	125 °C	-55 °C	Square	Glass Filled Polyester
Samtec Inc. ZSS-110-01-L-S-515	10	Black	UL94 V-0	Phosphor Bronze	Solder	0.63 in	1	Gold	Tin	Shrouded - 4 Wall		Male Pin	0.115 in	All	0.25 in	Through Hole	0.1 in	Keying Slot	Board Board or Cable	Elevated Header	10 µin	Push-Pull	3 A	0.515 in	125 °C	-55 °C	Square	Glass Filled Polyester
Samtec Inc. ZSS-110-08-F-D-1200	20	Black	UL94 V-0	Phosphor Bronze	Solder	1.33 in	2	Gold	Tin	Shrouded - 4 Wall	0.1 in	Male Pin	0.13 in	All	0.25 in	Through Hole	0.1 in	Keying Slot	Board Board or Cable	Elevated Header	3 µin	Push-Pull	3 A	1.2 in	125 °C	-55 °C	Square	Glass Filled Polyester
Samtec Inc. ZSS-110-01-G-D-450-07	20	Black	UL94 V-0	Phosphor Bronze	Solder	0.63 in	2	Gold	Gold	Shrouded - 4 Wall	0.1 in	Male Pin	0.18 in		0.25 in	Through Hole	0.1 in	Keying Slot	Board Board or Cable	Elevated Header		Push-Pull	3 A	0.45 in	125 °C	-55 °C	Square	Glass Filled Polyester	19
Samtec Inc. ZSS-110-04-G-D-615	20	Black	UL94 V-0	Phosphor Bronze	Solder	0.93 in	2	Gold	Gold	Shrouded - 4 Wall	0.1 in	Male Pin	0.315 in	All	0.25 in	Through Hole	0.1 in	Keying Slot	Board Board or Cable	Elevated Header		Push-Pull	3 A	0.615 in	125 °C	-55 °C	Square	Glass Filled Polyester
Samtec Inc. ZSS-110-07-F-D-1005	20	Black	UL94 V-0	Phosphor Bronze	Solder	1.23 in	2	Gold	Tin	Shrouded - 4 Wall	0.1 in	Male Pin	0.225 in	All	0.25 in	Through Hole	0.1 in	Keying Slot	Board Board or Cable	Elevated Header	3 µin	Push-Pull	3 A	1.005 in	125 °C	-55 °C	Square	Glass Filled Polyester
Samtec Inc. ZSS-110-06-F-D-1015	20	Black	UL94 V-0	Phosphor Bronze	Solder	1.13 in	2	Gold	Tin	Shrouded - 4 Wall	0.1 in	Male Pin	0.115 in	All	0.25 in	Through Hole	0.1 in	Keying Slot	Board Board or Cable	Elevated Header	3 µin	Push-Pull	3 A	1.015 in	125 °C	-55 °C	Square	Glass Filled Polyester
Samtec Inc. ZSS-110-09-S-D-1105	20	Black	UL94 V-0	Phosphor Bronze	Solder	1.43 in	2	Gold	Tin	Shrouded - 4 Wall	0.1 in	Male Pin	0.325 in	All	0.25 in	Through Hole	0.1 in	Keying Slot	Board Board or Cable	Elevated Header		Push-Pull	3 A	1.105 in	125 °C	-55 °C	Square	Glass Filled Polyester
Samtec Inc. ZSS-110-09-S-D-1340	20	Black	UL94 V-0	Phosphor Bronze	Solder	1.43 in	2	Gold	Tin	Shrouded - 4 Wall	0.1 in	Male Pin	0.09 in	All	0.25 in	Through Hole	0.1 in	Keying Slot	Board Board or Cable	Elevated Header		Push-Pull	3 A	1.34 in	125 °C	-55 °C	Square	Glass Filled Polyester

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

No documents available
