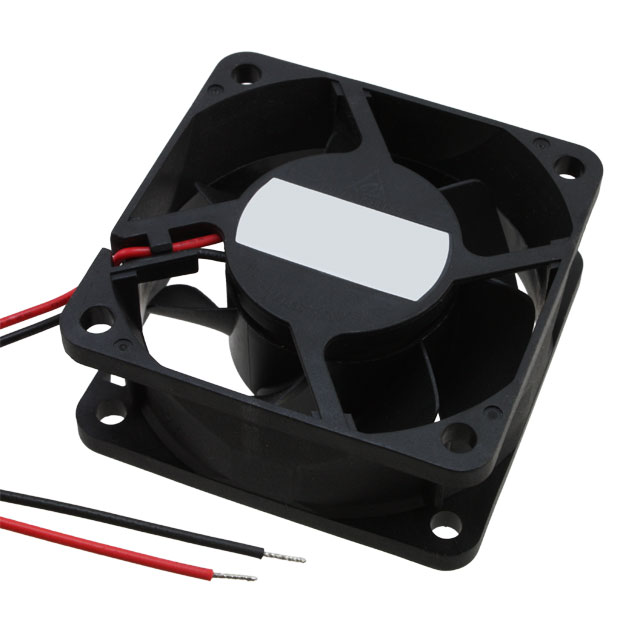

DSB0624VH-A
ObsoleteDelta Electronics
DC FAN AXIAL BALL 24V 12V TO 27.6V 27.76CFM 42DB 60 X 60 X 25.4MM
Deep-Dive with AI
Search across all available documentation for this part.
DSB0624VH-A
ObsoleteDelta Electronics
DC FAN AXIAL BALL 24V 12V TO 27.6V 27.76CFM 42DB 60 X 60 X 25.4MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DSB0624VH-A |
|---|---|
| Air Flow | 0.776 mł/min |
| Air Flow | 27.7 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Sleeve |
| Current Rating (Amps) | 0.23 A |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 30000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 42 dB |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 5.52 W |
| RPM | 5000 RPM |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Static Pressure | 73.2 Pa |
| Static Pressure | 0.294 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 27.6 VDC |
| Voltage Range [Min] | 12 VDC |
| Weight | 0.128 lb |
| Weight | 58.06 g |
| Width [y] | 25.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 8.58 | |
| 10 | $ 7.87 | |||
| 25 | $ 7.15 | |||
| 50 | $ 6.61 | |||
Description
General part information
DSB0624 Series
Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Sleeve 27.7 CFM (0.776m³/min) 2 Wire Leads
