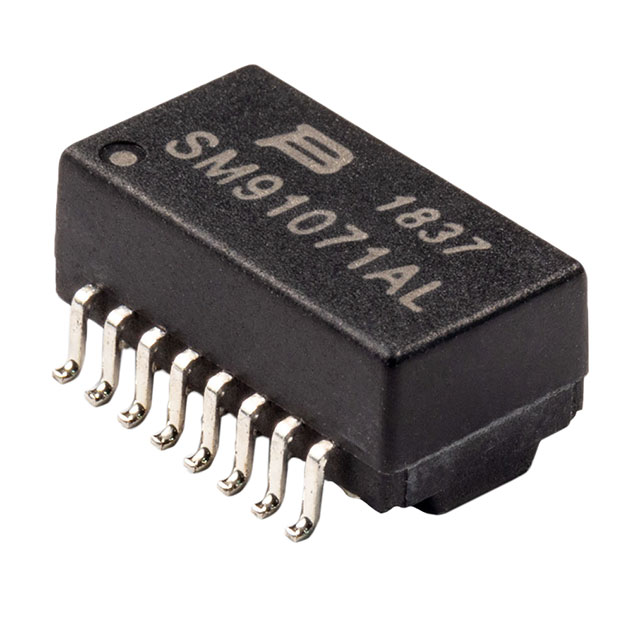

SM91071AL-E
ActiveBourns Inc.
ETHERNET & LAN TRANSFORMER, 10/100 BASE-T, 1 PORT, 0.6, 350 ΜH, 1.5 KVRMS, SURFACE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
SM91071AL-E
ActiveBourns Inc.
ETHERNET & LAN TRANSFORMER, 10/100 BASE-T, 1 PORT, 0.6, 350 ΜH, 1.5 KVRMS, SURFACE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM91071AL-E |
|---|---|
| Height - Seated (Max) [Max] | 5.65 mm |
| Height - Seated (Max) [Max] | 0.222 " |
| Inductance | 350 µH |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 12.8 mm |
| Size / Dimension [x] | 0.504 " |
| Size / Dimension [y] | 0.272 " |
| Size / Dimension [y] | 6.9 mm |
| Transformer Type | LAN 10/100 Base-T |
| Turns Ratio - Primary:Secondary | 1:1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.96 | |
| 10 | $ 4.02 | |||
| 25 | $ 3.25 | |||
| 50 | $ 3.04 | |||
| 100 | $ 2.91 | |||
| 250 | $ 2.82 | |||
| Digi-Reel® | 1 | $ 4.96 | ||
| 10 | $ 4.02 | |||
| 25 | $ 3.25 | |||
| 50 | $ 3.04 | |||
| 100 | $ 2.91 | |||
| 250 | $ 2.82 | |||
| Tape & Reel (TR) | 600 | $ 2.74 | ||
| 1200 | $ 2.65 | |||
Description
General part information
SM91071 Series
350µH LAN 10/100 Base-T Pulse Transformer 1:1 Surface Mount
