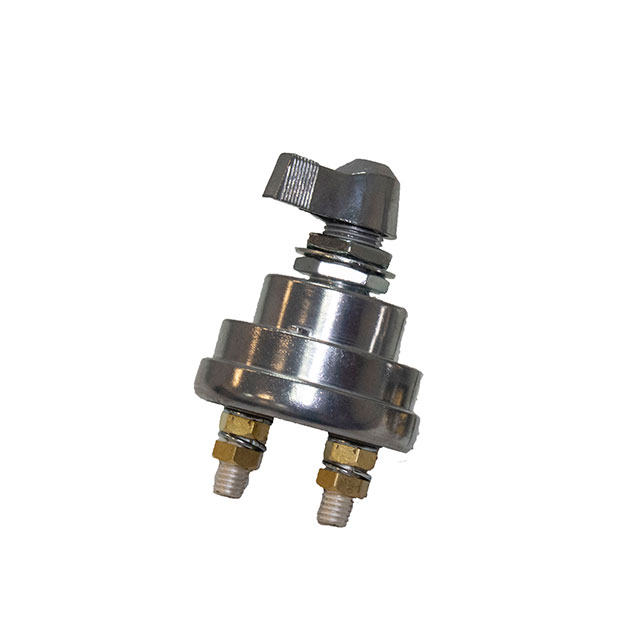

HDB3-1A-3-A

Active

Switch Components

SWITCH SELECT 2POS SPST 180A 24V

Search across all available documentation for this part.

Active

Switch Components

SWITCH SELECT 2POS SPST 180A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HDB3-1A-3-A	HDB3-1A Series

Circuit	SPST	SPST
Current Rating (Amps)	180 A	180 A
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Number of Positions	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Panel Cutout Dimensions [diameter]	18.6 mm	18.6 mm
Switch Function	On-Off	On-Off
Termination Style	Stud	Stud
Type	Battery Disconnect	Battery Disconnect
Voltage Rating - DC	24 V	24 V

SWITCH SELECT 2POS SPST 180A 24V

Part	Circuit	Voltage Rating - DC	Ingress Protection	Termination Style	Illumination	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Number of Positions	Type	Panel Cutout Dimensions [diameter]
Switch Components HDB3-1A-3-C1	SPST	24 V	IP65 - Dust Tight, Water Resistant	Stud	Non-Illuminated	180 A	85 °C	-40 °C	On-Off	2	Battery Disconnect	18.6 mm
Switch Components HDB3-1A-3-A	SPST	24 V	IP65 - Dust Tight, Water Resistant	Stud	Non-Illuminated	180 A	85 °C	-40 °C	On-Off	2	Battery Disconnect	18.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 49.31

General part information

Selector Switch 2 Position SPST 180A (DC) Panel Mount
