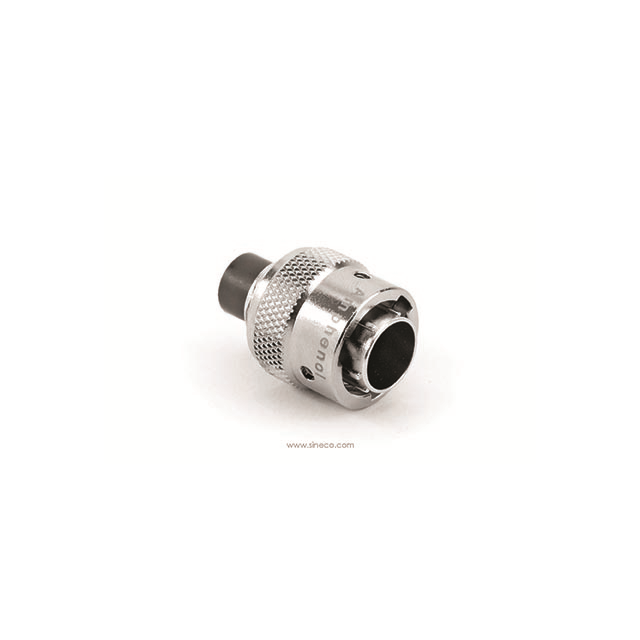

RT06102PNH03

Active

Amphenol Sine Systems Corp

PLUG, MALE WITH SILICONE SEAL

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

PLUG, MALE WITH SILICONE SEAL

Technical Specifications

Parameters and characteristics for this part

Specification	RT06102PNH03

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	20 (2), 16 (2)
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Silver
Includes	1 Gasket, 1 Connector, 1 O-Ring
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	10-2
Shielding	Shielded
Type	For Male Pins

Part	Shielding	Mounting Type	Number of Positions	Contact Size	Note	Insert Material	Fastening Type	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Shell Finish	Features	Connector Type	Ingress Protection	Shell Material	Primary Material	Type	Contact Type	Shell Size - Insert	Contact Shape	Orientation	Material Flammability Rating	Includes
Amphenol Sine Systems Corp RT06102PNHEC03	Shielded	Free Hanging (In-Line)	2	16 (2) 20 (2)	Contacts Not Included	Thermoplastic	Bayonet Lock	Silver	125 °C	-40 °C	Nickel	Coupling Nut	Plug Housing	IP67 - Dust Tight Waterproof	Zinc Alloy	Metal	For Male Pins	Crimp	10-2	Circular	N	UL94 V-0
Amphenol Sine Systems Corp RT06102PNH03	Shielded	Free Hanging (In-Line)	4	16 (2) 20 (2)	Contacts Not Included	Thermoplastic	Bayonet Lock	Silver	125 °C	-40 °C	Nickel	Coupling Nut	Plug Housing	IP67 - Dust Tight Waterproof	Zinc Alloy		For Male Pins	Crimp	10-2	Circular	N	UL94 V-0	1 Connector 1 Gasket 1 O-Ring

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 15.64

General part information

4 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
