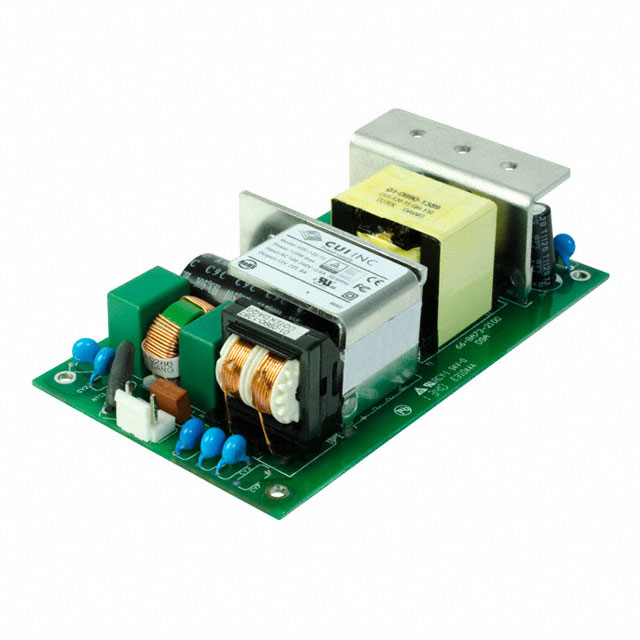

VOF-120-15
ObsoleteCUI Inc.
AC/DC CONVERTER 15V 120W
Deep-Dive with AI
Search across all available documentation for this part.
VOF-120-15
ObsoleteCUI Inc.
AC/DC CONVERTER 15V 120W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VOF-120-15 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | SIQ, CB Scheme, EN, UL, TUV, IEC, FCC |
| Current - Output 1 | 8 A |
| Efficiency | 86 % |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 °C |
| Size / Dimension [x] | 5 in |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [y] | 3 " |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [z] | 1.25 " |
| Size / Dimension [z] | 31.8 mm |
| Standard Number | 61204-3, 61000-3-2, 60950-1, 61000-6-1, 61000-3-3, 61000-6-3, 55024 |
| Type | Open Frame |
| Voltage - Input [Max] | 277 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 15 V |
VOF-120 Series
| Part | Features | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Current - Output 1 | Approval Agency | Mounting Type | Efficiency | Type | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Number of Outputs | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output 1 | Standard Number | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Inc. | Adjustable Output Universal Input | 33.1 mm | 3 " | 5 in | 76.2 mm | 1.32 in | 127 mm | 2.5 A | CB Scheme EN FCC IEC SIQ TUV UL | Chassis Mount | 90 % | Open Frame | 3000 V | 60 °C | -20 °C | ITE (Commercial) | 1 | 277 VAC | 90 VAC | 48 V | 55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 | ||
CUI Inc. | Adjustable Output Universal Input | 3 " | 5 in | 1.25 " | 127 mm | 8 A | CB Scheme EN FCC IEC SIQ TUV UL | Chassis Mount | 86 % | Open Frame | 3000 V | 60 °C | -20 °C | ITE (Commercial) | 1 | 277 VAC | 90 VAC | 15 V | 55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 | 76.2 mm | 31.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
VOF-120 Series
Open Frame AC DC Converters 1 Output 15V 90 ~ 277 VAC Input
