900319-1

Active

TE Connectivity AMP Connectors

CONN QC RCPT 18-20AWG 0.312

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC RCPT 18-20AWG 0.312

Technical Specifications

Parameters and characteristics for this part

Specification	900319-1

Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Insulated
Insulation Diameter [Max] [diameter]	2.3 mm, 0.091 "
Insulation Diameter [Min] [diameter]	0.063 ", 1.6 mm
Mounting Type	Free Hanging (In-Line), Right Angle
Tab Length	0.335 in
Tab Length	8.5 mm
Tab Thickness	0.031 "
Tab Thickness	0.79 mm
Tab Width	7.92 mm
Tab Width	0.312 in
Terminal Type	Flag, Angled - 90°
Termination	Crimp
Wire Gauge [Max]	20 AWG
Wire Gauge [Min]	17.5 AWG

CONN QC RCPT 18-20AWG 0.312

Part	Tab Length	Tab Length	Wire Gauge [Min]	Wire Gauge [Max]	Gender	Termination	Contact Finish	Insulation	Terminal Type	Tab Thickness	Tab Thickness	Mounting Type	Tab Width	Tab Width	Contact Material	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]
TE Connectivity AMP Connectors 900319-1	0.335 in	8.5 mm	17.5 AWG	20 AWG	Female	Crimp	Tin	Non-Insulated	Angled - 90°, Flag	0.031 "	0.79 mm	Free Hanging (In-Line), Right Angle	7.92 mm	0.312 in	Brass	0.063 ", 1.6 mm	0.091 ", 2.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

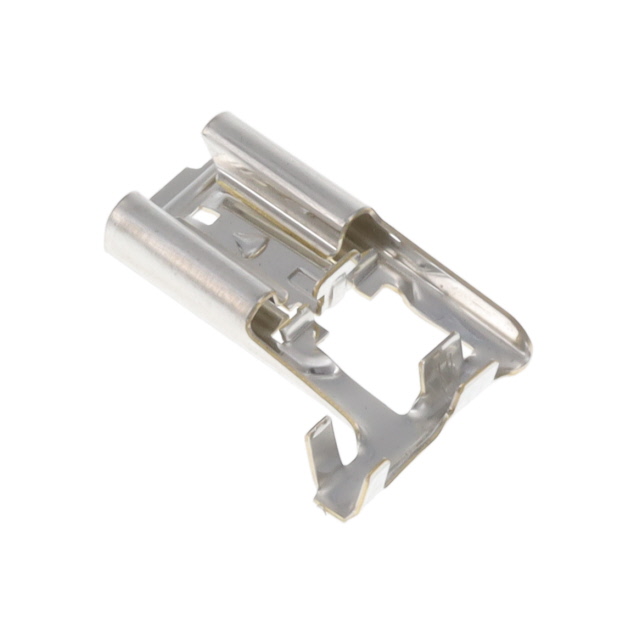

0.312" (7.92mm) Quick Connect Female 18-20 AWG Crimp Connector Non-Insulated
