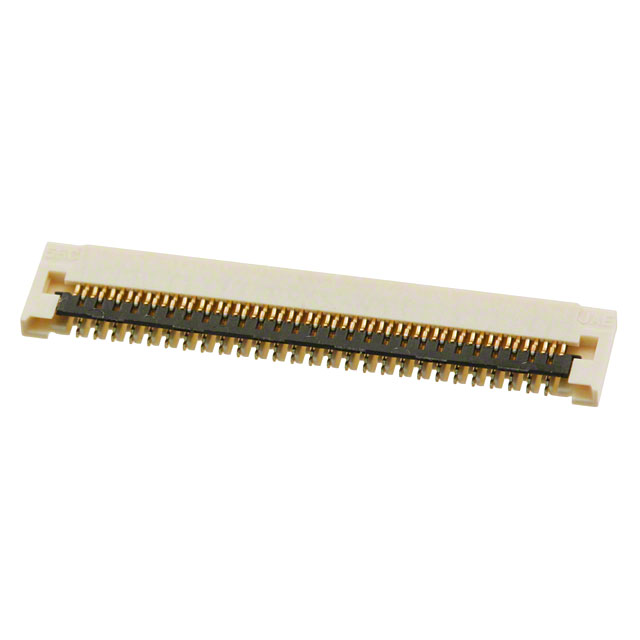

FF02S55SV1

Active

JAE Electronics

CONN FPC BOTTOM 55POS 0.3MM R/A

Search across all available documentation for this part.

Active

JAE Electronics

CONN FPC BOTTOM 55POS 0.3MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	FF02S55SV1

Actuator Color	Black
Actuator Material	Polyphenylene Sulfide (PPS)
Cable End Type	Straight
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	0.35 A
FFC, FCB Thickness	0.12 mm
Flat Flex Type	FPC
Height Above Board	0.88 mm
Height Above Board	0.035 "
Housing Color	White
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	55 positions
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.012 in
Pitch [x]	0.3 mm
Termination	Solder
Voltage Rating	50 V

Part	Actuator Material	Flat Flex Type	Material Flammability Rating	Termination	Number of Positions	Housing Color	Voltage Rating	Connector/Contact Type	Contact Material	Housing Material	FFC, FCB Thickness	Mounting Type	Actuator Color	Pitch [x]	Pitch [x]	Cable End Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Locking Feature	Contact Finish	Height Above Board	Height Above Board
JAE Electronics FF02S55SV1	Polyphenylene Sulfide (PPS)	FPC	UL94 V-0	Solder	55 positions	White	50 V	Contacts Bottom	Copper Alloy	Liquid Crystal Polymer (LCP)	0.12 mm	Surface Mount Right Angle	Black	0.012 in	0.3 mm	Straight	0.35 A	85 °C	-40 °C	Flip Lock	Gold	0.88 mm	0.035 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

55 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
