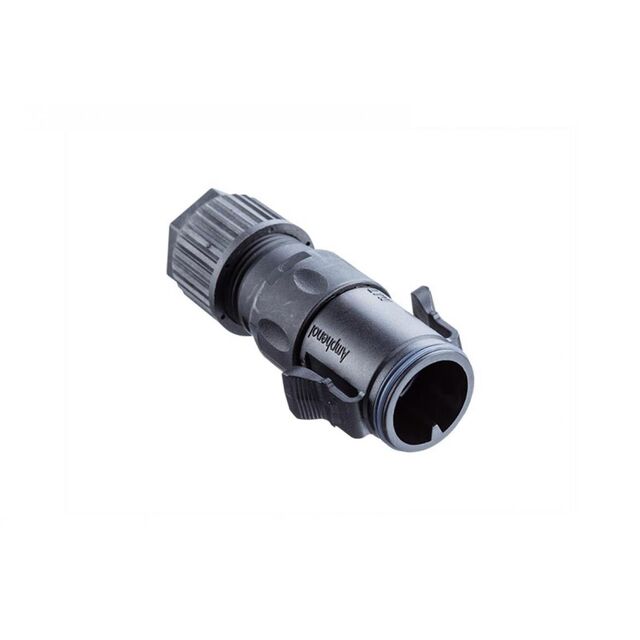

CB-03BMMC-RL7001

Active

Amphenol LTW

RBL, MIDDLE SIZE, PLASTIC, 10A, 03 PINS, MALE CONNECTOR, MALE CONTACT, STRAIGHT, PUSH LOCK WITH LATCH, CRIMP, FIELD INSTALLABLE

Search across all available documentation for this part.

Active

Amphenol LTW

RBL, MIDDLE SIZE, PLASTIC, 10A, 03 PINS, MALE CONNECTOR, MALE CONTACT, STRAIGHT, PUSH LOCK WITH LATCH, CRIMP, FIELD INSTALLABLE

Technical Specifications

Parameters and characteristics for this part

Specification	CB-03BMMC-RL7001

Color	Black
Connector Type	Plug, Male Pins
Current Rating (Amps)	10 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyphenylene Ether (PPE)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyphenylene Ether (PPE)
Shell Size - Insert	C
Shielding	Unshielded
Termination	Crimp
Voltage Rating	300 VDC

Part	Shell Size - Insert	Mounting Type	Voltage Rating	Orientation	Current Rating (Amps)	Ingress Protection	Insert Material	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Termination	Material Flammability Rating	Connector Type	Shielding	Color
Amphenol LTW CB-03BMMC-RL7001	C	Free Hanging (In-Line)	300 VDC	Keyed	10 A	IP67 - Dust Tight Waterproof	Polyphenylene Ether (PPE)	Polyphenylene Ether (PPE)	-40 °C	105 ░C	Plastic	Crimp	UL94 V-0	Male Pins Plug	Unshielded	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Male Pins Crimp
