10320-52F0-008

Active

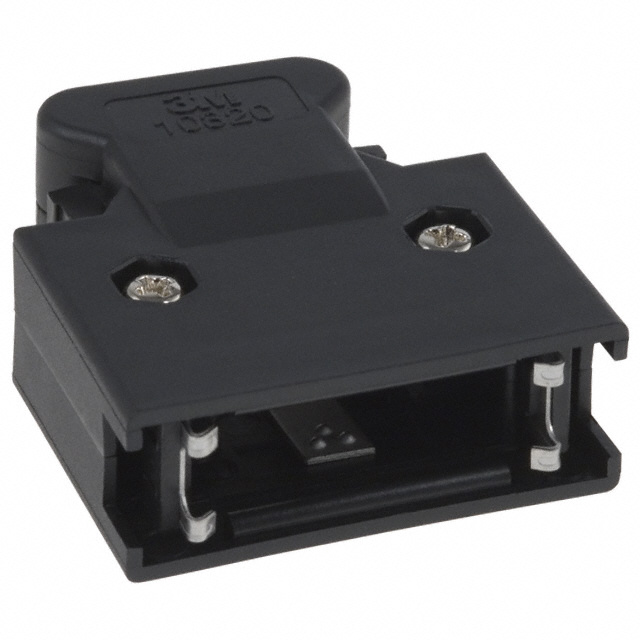

CONN BACKSHELL 20POS 180DEG BLK

Search across all available documentation for this part.

Active

CONN BACKSHELL 20POS 180DEG BLK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10320-52F0-008	10320 Series

	-	-
Accessory Type	Two Piece Backshell	Two Piece Backshell, Two Piece Backshell and Cover
Cable Exit	180 °	60 - 180 °
Cable Type	Round	Round
Color	Black	Silver, Beige, Black
Features	Latch Lock	Latch Lock, Mating Screws M2.6
Hardware	Assembly Hardware, Strain Relief	Assembly Hardware, Strain Relief
Material	Polybutylene Terephthalate (PBT), Glass Filled	Aluminum, Zinc Alloy, Metal, Plastic, Polybutylene Terephthalate (PBT), Glass Filled, Polyester, Glass Filled
Material	-	Plastic, Steel
Material	-	Metal
Number of Positions	20	20
Plating	-	Nickel
Primary Material	Plastic	Metal, Plastic
Shielding	Unshielded	Shielded, Unshielded

CONN BACKSHELL 20POS 180DEG SHLD

Part	Cable Type	Primary Material	Material	Color	Plating	Features	Shielding	Number of Positions	Accessory Type	Cable Exit	Material [custom]	Material [custom]	Hardware
3M 10320-A200-60	Round	Metal	Aluminum	Silver	Nickel	Latch Lock	Shielded	20	Two Piece Backshell	180 °
3M 10320-3540-000						Latch Lock		20	Two Piece Backshell	60 °
3M 10320-3210-000	Round	Metal		Beige		Latch Lock	Shielded	20	Two Piece Backshell and Cover	180 °	Plastic, Steel	Metal
3M 10320-A200-50	Round	Metal	Aluminum	Silver	Nickel	Latch Lock	Shielded	20	Two Piece Backshell	180 °
3M 10320-3210-00E
3M 10320-C200-00	Round	Metal	Zinc Alloy	Silver	Nickel	Latch Lock	Shielded	20	Two Piece Backshell	180 °
3M 10320-A200-00	Round	Metal	Metal, Zinc Alloy	Silver	Nickel	Latch Lock	Shielded	20	Two Piece Backshell	180 °
3M 10320-E2W0-008	Round	Plastic	Plastic	Black				20	Two Piece Backshell	180 °			Assembly Hardware
3M 10320-52F0-008	Round	Plastic	Polybutylene Terephthalate (PBT), Glass Filled	Black		Latch Lock	Unshielded	20	Two Piece Backshell	180 °			Assembly Hardware, Strain Relief
3M 10320-52A0-008	Round	Plastic	Polyester, Glass Filled	Black		Mating Screws M2.6	Unshielded	20	Two Piece Backshell	180 °			Assembly Hardware, Strain Relief

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Two Piece Backshell Connector Black 180° Unshielded
