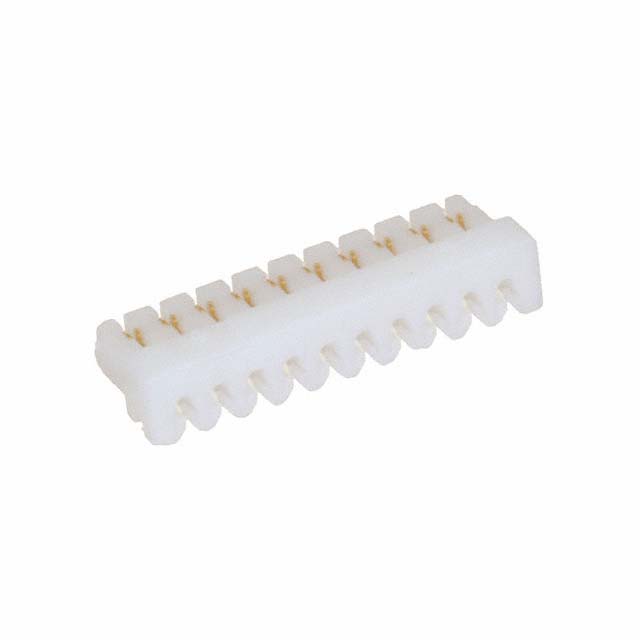

08CH-A-10-IDC

Unknown

Adam Tech

CONN HOUSING RCP 10 POS 0.8MM CRIMP ST CABLE MOUNT NATURAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

08CH-A-10-IDC

Unknown

Adam Tech

CONN HOUSING RCP 10 POS 0.8MM CRIMP ST CABLE MOUNT NATURAL

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	08CH-A-10-IDC

Cable Termination	IDC
Color	Natural
Connector Type	Receptacle
Contact Finish	Tin
Contact Type	Female Socket
Fastening Type	Friction Lock
Features	Closed End
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Number of Rows	1
Pitch [x]	0.8 mm
Pitch [x]	0.031 in
Wire Gauge [Max]	36 AWG
Wire Gauge [Min]	32 AWG
Wire Type	Discrete

08CH-A Series

Part	Contact Type	Wire Gauge [Min]	Wire Gauge [Max]	Fastening Type	Contact Finish	Mounting Type	Color	Features	Pitch [x]	Pitch [x]	Wire Type	Number of Rows	Cable Termination	Connector Type	Number of Positions	Contact Finish Thickness
Adam Tech 08CH-A-02-IDC	Female Socket	32 AWG	36 AWG	Friction Lock	Tin	Free Hanging (In-Line)	Natural	Closed End	0.8 mm	0.031 in	Discrete	1	IDC	Receptacle	2
Adam Tech 08CH-A-08-G-IDC	Female Socket	32 AWG	36 AWG	Friction Lock	Gold	Free Hanging (In-Line)	Natural	Closed End	0.8 mm	0.031 in	Discrete	1	IDC	Receptacle	8	Flash
Adam Tech 08CH-A-04-G-IDC	Female Socket	32 AWG	36 AWG	Friction Lock	Gold	Free Hanging (In-Line)	Natural	Closed End	0.8 mm	0.031 in	Discrete	1	IDC	Receptacle	4	Flash
Adam Tech 08CH-A-02-G-IDC	Female Socket	32 AWG	36 AWG	Friction Lock	Gold	Free Hanging (In-Line)	Natural	Closed End	0.8 mm	0.031 in	Discrete	1	IDC	Receptacle	2	Flash
Adam Tech 08CH-A-03-G-IDC	Female Socket	32 AWG	36 AWG	Friction Lock	Gold	Free Hanging (In-Line)	Natural	Closed End	0.8 mm	0.031 in	Discrete	1	IDC	Receptacle		Flash
Adam Tech 08CH-A-09-IDC	Female Socket	32 AWG	36 AWG	Friction Lock	Tin	Free Hanging (In-Line)	Natural	Closed End	0.8 mm	0.031 in	Discrete	1	IDC	Receptacle	9
Adam Tech 08CH-A-05-G-IDC	Female Socket	32 AWG	36 AWG	Friction Lock	Gold	Free Hanging (In-Line)	Natural	Closed End	0.8 mm	0.031 in	Discrete	1	IDC	Receptacle		Flash
Adam Tech 08CH-A-10-IDC	Female Socket	32 AWG	36 AWG	Friction Lock	Tin	Free Hanging (In-Line)	Natural	Closed End	0.8 mm	0.031 in	Discrete	1	IDC	Receptacle	10
Adam Tech 08CH-A-06-G-IDC	Female Socket	32 AWG	36 AWG	Friction Lock	Gold	Free Hanging (In-Line)	Natural	Closed End	0.8 mm	0.031 in	Discrete	1	IDC	Receptacle	6	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1.36
		10	$ 1.03
		25	$ 0.93
		50	$ 0.86
		100	$ 0.79
		250	$ 0.72
		500	$ 0.67
		1000	$ 0.62
