25272 BK199

Active

ALPHA WIRE

MULTI-PAIR 4COND 24AWG BLK 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 4COND 24AWG BLK 1000'

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 6.28

General part information

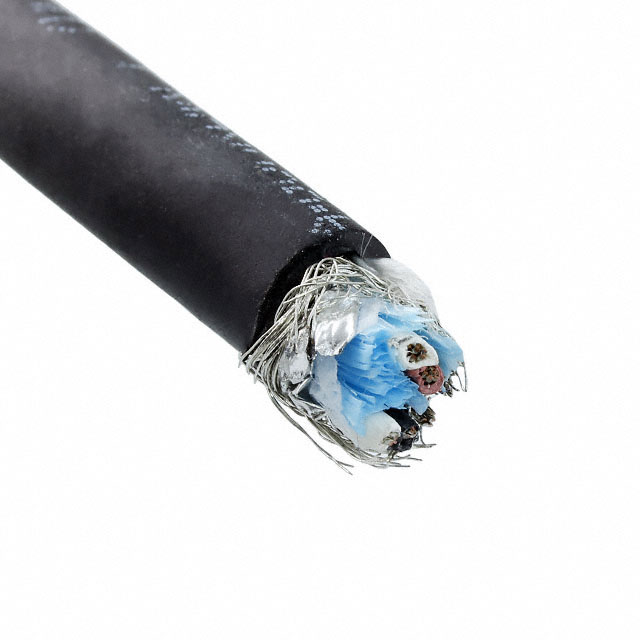

4 (2 Pair Twisted) Conductor Multi-Pair Cable Black 24 AWG Foil, Braid 1000.0' (304.8m)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	25272 BK199	25272 Series

Cable Type	Multi-Pair	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	32 AWG	32 AWG
Conductor Strand [custom]	7	7
Features	Rip Cord, Biological Compatibility, Drain Wire	Rip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.24 in	0.24 in
Jacket (Insulation) Diameter [diameter]	6.1 mm	6.1 mm
Jacket (Insulation) Material	Polyurethane (PU)	Polyurethane (PU)
Jacket Color	Black	Black
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Length	-	30.5 m
Length	-	100 ft
Number of Conductors	4	4
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Ratings	UL Style 20668, ISO 10993	UL Style 20668, ISO 10993
Shield Coverage	70 %, 100 %	70 - 100 %
Shield Material	Copper, Tinned, Suprashield®	Copper, Tinned, Suprashield®
Shield Type	Foil, Braid	Foil, Braid
Voltage	300 V	300 V
Wire Gauge	24 AWG	24 AWG

MULTI-PAIR 4COND 24AWG BLK 100'

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Features	Conductor Material	Jacket (Insulation) Material	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Ratings	Length [x]	Length [x]	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Jacket Color	Cable Type	Shield Type	Voltage	Length	Length
ALPHA WIRE 25272 BK005	0.24 in	6.1 mm	24 AWG	Biological Compatibility, Drain Wire, Rip Cord	Copper, Tinned	Polyurethane (PU)	4	-30 ░C	90 °C	Copper, Tinned, Suprashield®	ISO 10993, UL Style 20668	30.5 m	100 ft	Poly-Vinyl Chloride (PVC)	32 AWG	7	70 %, 100 %	Black	Multi-Pair	Braid, Foil	300 V
ALPHA WIRE 25272 BK199	0.24 in	6.1 mm	24 AWG	Biological Compatibility, Drain Wire, Rip Cord	Copper, Tinned	Polyurethane (PU)	4	-30 ░C	90 °C	Copper, Tinned, Suprashield®	ISO 10993, UL Style 20668			Poly-Vinyl Chloride (PVC)	32 AWG	7	70 %, 100 %	Black	Multi-Pair	Braid, Foil	300 V	1000 ft	304.8 m
