EGUARD0503F
ActiveSMC Diode Solutions

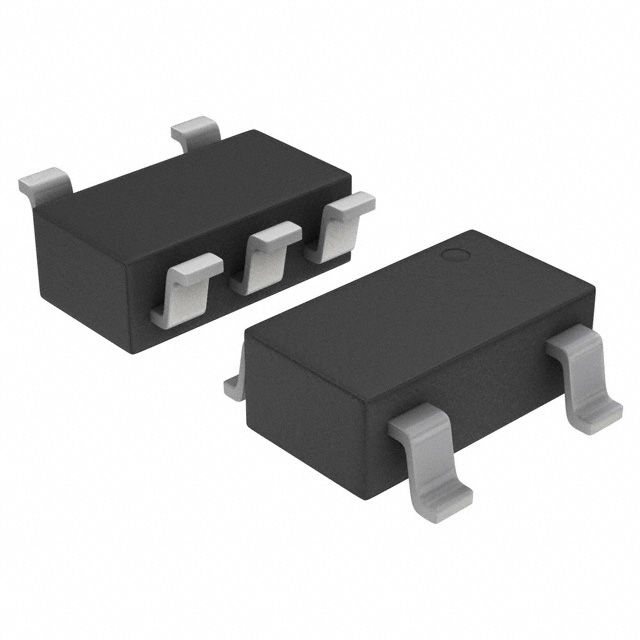

TVS DIODE 5VWM 25VC SOT353
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EGUARD0503F
ActiveSMC Diode Solutions
TVS DIODE 5VWM 25VC SOT353
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EGUARD0503F |
|---|---|
| Applications | USB OTG |
| Capacitance @ Frequency | 3 pF |
| Current - Peak Pulse (10/1000µs) | 6 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SC-70-5, 5-TSSOP, SOT-353 |
| Power - Peak Pulse | 150 W |
| Power Line Protection | True |
| Supplier Device Package | SOT-353 |
| Type | Steering |
| Unidirectional Channels [custom] | 4 |
| Voltage - Breakdown (Min) [Min] | 6 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 25 V |
| Voltage - Reverse Standoff (Typ) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.83 | |
| 10 | $ 1.17 | |||
| 100 | $ 0.78 | |||
| 500 | $ 0.62 | |||
| 1000 | $ 0.57 | |||
| Digi-Reel® | 1 | $ 1.83 | ||
| 10 | $ 1.17 | |||
| 100 | $ 0.78 | |||
| 500 | $ 0.62 | |||
| 1000 | $ 0.57 | |||
| Tape & Reel (TR) | 3000 | $ 0.51 | ||
| 6000 | $ 0.49 | |||
| 9000 | $ 0.46 | |||
Description
General part information
EGUARD0503 Series
25V Clamp 6A (8/20µs) Ipp Tvs Diode Surface Mount SOT-353
