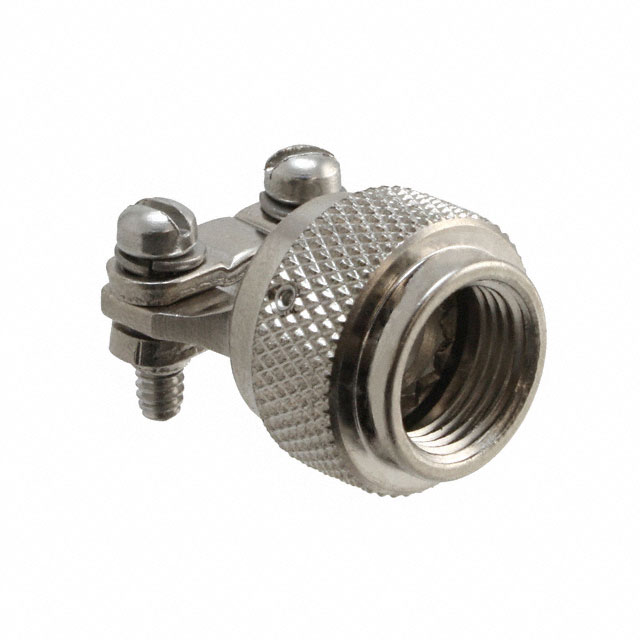

M85049/38S9N

Active

Amphenol Interconnect India

CONN CABLE CLAMP SZ9 SILVER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPlating

M85049/38S9N

Active

Amphenol Interconnect India

CONN CABLE CLAMP SZ9 SILVER

Deep-Dive with AI

DocumentsPlating

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M85049/38S9N

Cable Exit	180 °
Cable Opening	5.84
Cable Opening [Max]	0.23 in
Cable Opening [Min]	2.54 mm
Cable Opening [Min]	0.1 in
Color	Silver
Diameter - Outside [diameter]	21.84 mm
Diameter - Outside [diameter]	0.86 in
Features	Clamp Screws, Self-Locking
For Use With/Related Products	MIL-DTL-38999 Series III, IV
Material	Aluminum Alloy
Plating	Electroless Nickel
Shell Size - Insert	9
Type	Cable Clamp

M85049/38 Series

Part	Type	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Features	Color	For Use With/Related Products	Cable Exit	Plating	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Shell Size - Insert	Material	Shielding	Shell Size - Insert	Cable Opening [Min]	Cable Opening [Min] [diameter]	Cable Opening [Max]	Cable Opening [Max] [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening
Amphenol Interconnect India M85049/38S11W	Cable Clamp	0.15 in	0.23 in	5.84 mm	3.81 mm	Clamp Screws Self-Locking	Olive	MIL-DTL-38999 Series III IV	180 °	Cadmium Nickel	0.98 in	24.9 mm	11	Aluminum Alloy
Amphenol Interconnect India M85049/38S15W	Cable Clamp					Clamp Screws Self-Locking	Olive	MIL-DTL-38999 Series III IV	180 °	Cadmium Nickel	1.28 in	32.51 mm	15	Aluminum Alloy
Amphenol Interconnect India M85049/38-21N	Cable Clamp	0.343 in	0.698 in	17.73 mm	8.71 mm	Strain Relief	Silver	MIL-DTL-38999 Series III IV	180 °	Electroless Nickel	1.5 in	38.1 mm	21	Aluminum Alloy	Unshielded	G
Amphenol Interconnect India M85049/38S13W	Cable Clamp					Clamp Screws Self-Locking	Olive	MIL-DTL-38999 Series III IV	180 °	Cadmium Nickel	1.16 in	29.46 mm	13	Aluminum Alloy			4.83 mm	0.19 in	8.38 mm	0.33 in
Amphenol Interconnect India M85049/38S25W	Cable Clamp					Clamp Screws Self-Locking	Olive	MIL-DTL-38999 Series III IV	180 °	Cadmium Nickel	1.89 "	48.01 mm	25	Aluminum Alloy							10.67 mm 21.59 mm	0.42 in 0.85 in
Amphenol Interconnect India M85049/38-25W	Cable Clamp					Clamp Screws	Olive	MIL-DTL-38999 Series III IV	180 °	Cadmium Nickel	1.89 "	48.01 mm	25	Aluminum Alloy							10.67 mm 21.59 mm	0.42 in 0.85 in
Amphenol Interconnect India M85049/38S17N	Cable Clamp					Clamp Screws Self-Locking	Silver	MIL-DTL-38999 Series III IV	180 °	Electroless Nickel	1.41 in	35.81 mm	17	Aluminum Alloy									0.28 in 0.61 in	7.11 mm 15.49 mm
Amphenol Interconnect India M85049/38-23W	Cable Clamp					Clamp Screws	Olive	MIL-DTL-38999 Series III IV	180 °	Cadmium Nickel	1.77 "	44.96 mm	23	Aluminum Alloy										0.38 in 9.65 mm	0.82 in 20.83 mm
Amphenol Interconnect India M85049/38-25N	Cable Clamp	0.418 in	0.853 in	21.67 mm	10.62 mm	Strain Relief	Silver	MIL-DTL-38999 Series III IV	180 °	Electroless Nickel	1.75 in	44.45 mm	25	Aluminum Alloy	Unshielded	J
Amphenol Interconnect India M85049/38S9N	Cable Clamp					Clamp Screws Self-Locking	Silver	MIL-DTL-38999 Series III IV	180 °	Electroless Nickel	0.86 in	21.84 mm	9	Aluminum Alloy			2.54 mm									0.23 in	0.1 in	5.84

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.70
		10	$ 17.08
		25	$ 16.19
		50	$ 15.95
		100	$ 14.07
		250	$ 13.14
		500	$ 12.85

Description

General part information

M85049/38 Series

Silver Connector Cable Clamp 9
