PF24015 NA005

Active

ALPHA WIRE

SLEEVING 0.057" ID FBRGLASS 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

SLEEVING 0.057" ID FBRGLASS 100'

Technical Specifications

Parameters and characteristics for this part

Specification	PF24015 NA005

Abrasion Protection	Abrasion Resistant
Color	Natural
Diameter - Inside [diameter]	1.45 mm
Diameter - Inside [diameter]	0.057 in
Diameter - Outside [diameter]	0.089 in
Diameter - Outside [diameter]	2.26 mm
Environment Protection	Corrosion Resistant
Length	100 ft
Length	30.48 m
Material	Fiberglass
Material Flammability Rating	UL VW-1
Operating Temperature [Max]	648 °C
Operating Temperature [Min]	-60 °C
Type	Sleeving
Type Attributes	Braided
Wall Thickness	0.011 in
Wall Thickness	0.28 mm

SLEEVING 0.057" ID FBRGLASS 100'

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Type	Color	Wall Thickness	Wall Thickness	Abrasion Protection	Material Flammability Rating	Environment Protection	Type Attributes	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Material
ALPHA WIRE PF24015 NA005	-60 °C	648 °C	100 ft	30.48 m	Sleeving	Natural	0.011 in	0.28 mm	Abrasion Resistant	UL VW-1	Corrosion Resistant	Braided	1.45 mm	0.057 in	0.089 in	2.26 mm	Fiberglass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

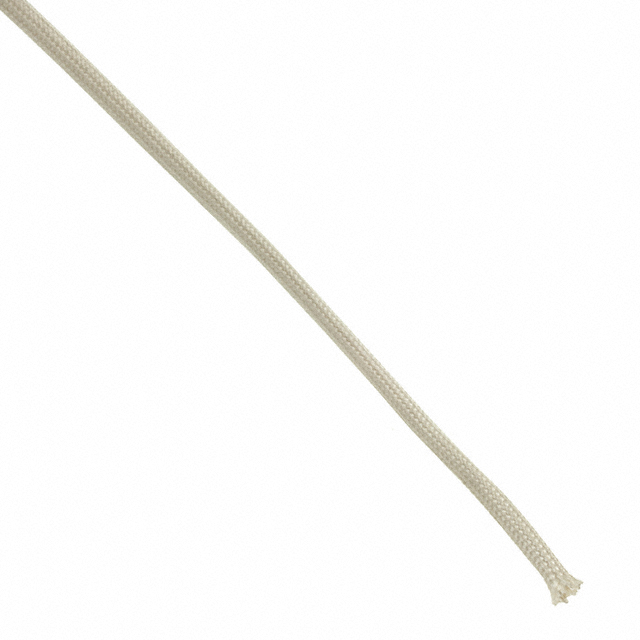

Natural Fiberglass Braided Sleeving 0.057" (1.45mm) 100' (30.48m)
