Q-2201D000R0.5M

Active

Amphenol Custom Cable

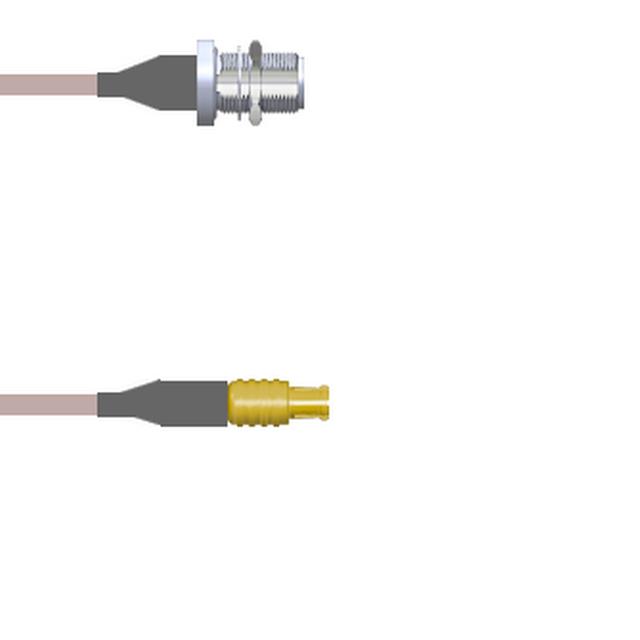

CBL ASSY MCX-NTYPE PL-JK 19.69"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2201D000R0.5M

Active

Amphenol Custom Cable

CBL ASSY MCX-NTYPE PL-JK 19.69"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2201D000R0.5M

1st Connector	MCX Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	MCX to N-Type

Q-2201D0 Series

Part	2nd Connector Mounting Feature	1st Connector	2nd Contact Gender	Color	2nd Connector	1st Contact Gender	2nd Connector Mounting Type	Style	Cable Type	1st Connector Mounting Type	Length	Length	Frequency - Max [Max]	Features	Overall Impedance	Length
Amphenol Custom Cable Q-2201D000R003i	Bulkhead - Front Side Nut	MCX Plug	Female	Copper	N-Type Jack	Male	Panel Mount	MCX to N-Type	RG-316 DB	Free Hanging (In-Line)	3 in	76.2 mm	6000 MHz	Shielded	50 Ohms
Amphenol Custom Cable Q-2201D000R024i	Bulkhead - Front Side Nut	MCX Plug	Female	Copper	N-Type Jack	Male	Panel Mount	MCX to N-Type	RG-316 DB	Free Hanging (In-Line)	24 "	609.6 mm	6000 MHz	Shielded	50 Ohms
Amphenol Custom Cable Q-2201D000R.75M	Bulkhead - Front Side Nut	MCX Plug	Female	Copper	N-Type Jack	Male	Panel Mount	MCX to N-Type	RG-316 DB	Free Hanging (In-Line)	29.53 "	750 mm	6000 MHz	Shielded	50 Ohms
Amphenol Custom Cable Q-2201D000R009i	Bulkhead - Front Side Nut	MCX Plug	Female	Copper	N-Type Jack	Male	Panel Mount	MCX to N-Type	RG-316 DB	Free Hanging (In-Line)	9 "	228.6 mm	6000 MHz	Shielded	50 Ohms
Amphenol Custom Cable Q-2201D000R060i	Bulkhead - Front Side Nut	MCX Plug	Female	Copper	N-Type Jack	Male	Panel Mount	MCX to N-Type	RG-316 DB	Free Hanging (In-Line)	5 '	1.5 m	6000 MHz	Shielded	50 Ohms	5 ft
Amphenol Custom Cable Q-2201D000R0.5M	Bulkhead - Front Side Nut	MCX Plug	Female	Copper	N-Type Jack	Male	Panel Mount	MCX to N-Type	RG-316 DB	Free Hanging (In-Line)	19.69 "	50 cm	6000 MHz	Shielded	50 Ohms
Amphenol Custom Cable Q-2201D000R001M	Bulkhead - Front Side Nut	MCX Plug	Female	Copper	N-Type Jack	Male	Panel Mount	MCX to N-Type	RG-316 DB	Free Hanging (In-Line)	39.4 in	1 m	6000 MHz	Shielded	50 Ohms	3.3 ft
Amphenol Custom Cable Q-2201D000R003M	Bulkhead - Front Side Nut	MCX Plug	Female	Copper	N-Type Jack	Male	Panel Mount	MCX to N-Type	RG-316 DB	Free Hanging (In-Line)	118.1 in	3 m	6000 MHz	Shielded	50 Ohms	9.8 '
Amphenol Custom Cable Q-2201D000R084i	Bulkhead - Front Side Nut	MCX Plug	Female	Copper	N-Type Jack	Male	Panel Mount	MCX to N-Type	RG-316 DB	Free Hanging (In-Line)	84 in	2.1 m	6000 MHz	Shielded	50 Ohms	7 ft
Amphenol Custom Cable Q-2201D000R108i	Bulkhead - Front Side Nut	MCX Plug	Female	Copper	N-Type Jack	Male	Panel Mount	MCX to N-Type	RG-316 DB	Free Hanging (In-Line)	108 in	2.7 m	6000 MHz	Shielded	50 Ohms	9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 193.41
		25	$ 189.71
		50	$ 186.01
		100	$ 182.32
		250	$ 178.62

Description

General part information

Q-2201D0 Series

Cable Assembly Coaxial MCX to N-Type RG-316 DB 19.69" (500.00mm)

Documents

Technical documentation and resources

No documents available
