17N78-216E.1

Active

Portescap

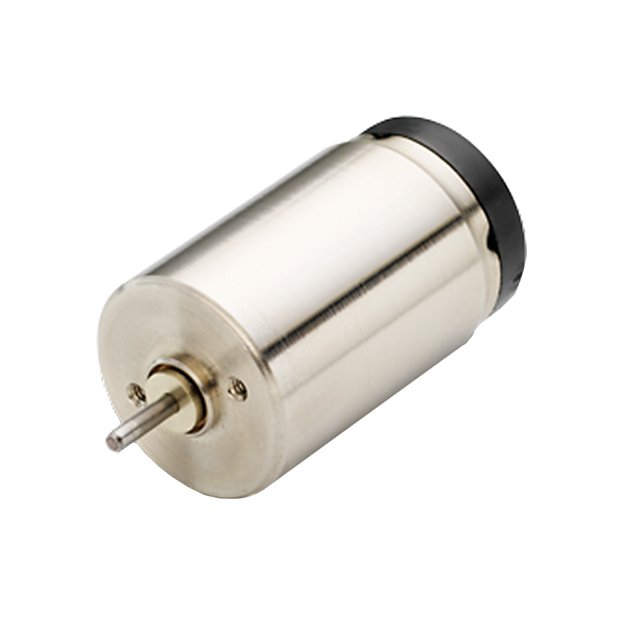

STANDARD MOTOR 10000 RPM 6V

Search across all available documentation for this part.

Active

Portescap

STANDARD MOTOR 10000 RPM 6V

Technical Specifications

Parameters and characteristics commom to parts in this series

STANDARD MOTOR 10000 RPM 18V

Part	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Size / Dimension [diameter]	Size / Dimension [diameter]	Function	Mounting Hole Spacing	Mounting Hole Spacing	Termination Style	Weight	Weight	Length - Shaft and Bearing	Length - Shaft and Bearing [x]	Power - Rated	RPM	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Rated	Motor Type
Portescap 17N78-208E.1	0.059 in	1.5 mm	0.669 in	17 mm	Standard	10 mm	0.394 in	Solder Tab	0.06 lb	27.22 g	7.5 mm	0.295 in	3.2 W	10000 RPM	4.89 mNm	0.69 oz-in	-30 ░C	85 °C	DC Motor	18 VDC	Brushed
Portescap 17N78-216E.1	0.059 in	1.5 mm	0.669 in	17 mm	Standard	10 mm	0.394 in	Solder Tab	0.06 lb	27.22 g	7.5 mm	0.295 in	3.6 W	10000 RPM	5.69 mNm	0.81 oz-in	-30 ░C	85 °C	DC Motor	6 VDC	Brushed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	30	$ 114.81

General part information

Brushed DC Motor Standard 10000 RPM 3.6W 6VDC

Technical documentation and resources

No documents available
