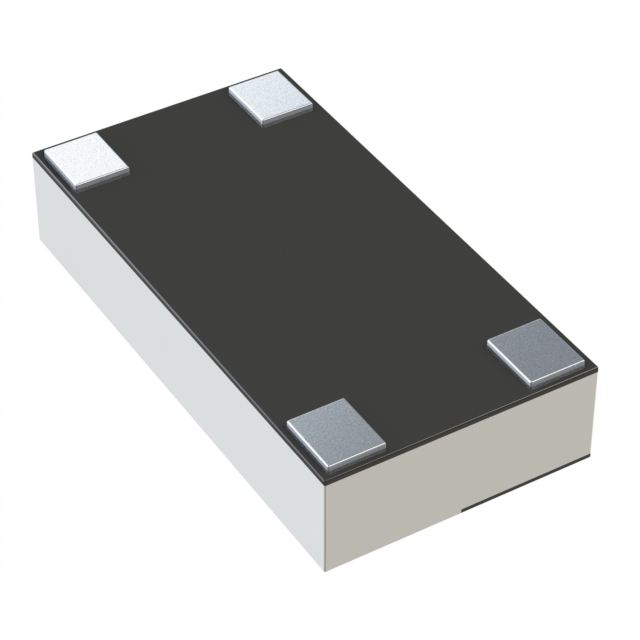

CP2816A0675ANTR
ActiveKyocera AVX
CP2816 SERIES, 20W THIN FILM COU
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CP2816A0675ANTR
ActiveKyocera AVX
CP2816 SERIES, 20W THIN FILM COU
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CP2816A0675ANTR |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | -10 dB |
| Frequency [Max] | 750 MHz |
| Frequency [Min] | 600 MHz |
| Insertion Loss | -1 dB |
| Package / Case | 4-SMD, No Lead |
| Power - Max [Max] | 20 W |
| Supplier Device Package | 4-SMD |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 46.35 | |
| 10 | $ 44.80 | |||
| 25 | $ 43.26 | |||
| 50 | $ 41.72 | |||
| Digi-Reel® | 1 | $ 46.35 | ||
| 10 | $ 44.80 | |||
| 25 | $ 43.26 | |||
| 50 | $ 41.72 | |||
| Tape & Reel (TR) | 100 | $ 37.85 | ||
Description
General part information
CP2816 Series
RF Directional Coupler General Purpose 600MHz ~ 750MHz -10 ± 1.2dB 20W 4-SMD, No Lead
