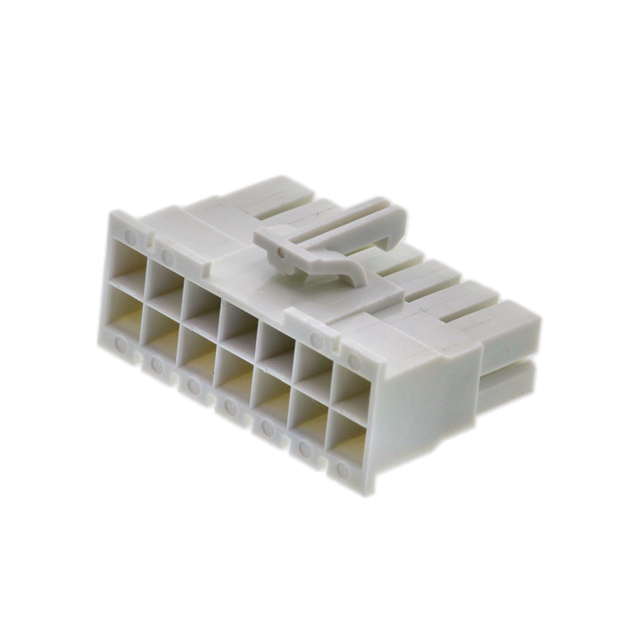

IPBD-07-D
ActiveSamtec Inc.
CONN RCPT HSG 14POS 4.20MM
Deep-Dive with AI
Search across all available documentation for this part.
IPBD-07-D
ActiveSamtec Inc.
CONN RCPT HSG 14POS 4.20MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IPBD-07-D |
|---|---|
| Color | Beige |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Pitch [x] | 4.2 mm |
| Pitch [x] | 0.165 in |
| Row Spacing | 4.2 mm |
| Row Spacing | 0.165 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.51 | |
| 10 | $ 1.91 | |||
| 25 | $ 1.72 | |||
| 50 | $ 1.59 | |||
| 100 | $ 1.47 | |||
| 250 | $ 1.33 | |||
| 500 | $ 1.24 | |||
| 1000 | $ 1.16 | |||
| 2500 | $ 1.05 | |||
Description
General part information
IPBD-07 Series
14 Rectangular Connectors - Housings Receptacle Beige 0.165" (4.20mm)
