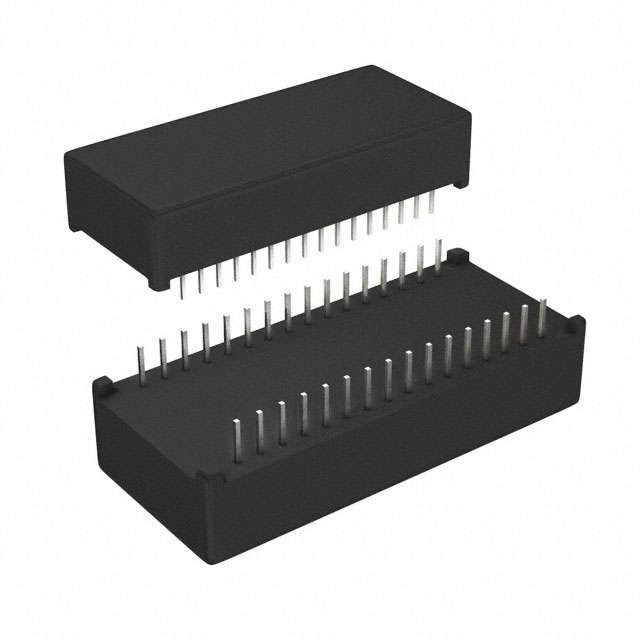

M48T129V-85PM1

Obsolete

STMicroelectronics

IC RTC CLOCK/CALENDAR PAR 32DIP

Search across all available documentation for this part.

Obsolete

STMicroelectronics

IC RTC CLOCK/CALENDAR PAR 32DIP

Technical Specifications

Parameters and characteristics for this part

Specification	M48T129V-85PM1

Current - Timekeeping (Max)	3 mA
Features	Watchdog Timer, Alarm, Leap Year
Interface	Parallel
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	0.6 in
Package / Case	15.24 mm
Package / Case	32-DIP Module
Supplier Device Package	32-PMDIP Module
Time Format	HH:MM:SS (24 hr)
Type	Clock/Calendar
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Timekeeping (Max)	Interface	Package / Case	Package / Case	Package / Case	Features	Supplier Device Package	Time Format
STMicroelectronics M48T129Y-70PM1	4.5 V	5.5 V	Through Hole	Clock/Calendar	70 °C	0 °C	4 mA	Parallel	0.6 in	15.24 mm	32-DIP Module	Alarm Leap Year Watchdog Timer	32-PMDIP	HH:MM:SS (24 hr)
STMicroelectronics M48T129V-85PM1	3 V	3.6 V	Through Hole	Clock/Calendar	70 °C	0 °C	3 mA	Parallel	0.6 in	15.24 mm	32-DIP Module	Alarm Leap Year Watchdog Timer	32-PMDIP Module	HH:MM:SS (24 hr)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Real Time Clock (RTC) IC Clock/Calendar Parallel 32-DIP Module (0.600", 15.24mm)
