717-009 Series

Part	Mounting Type	Contact Material	Contact Type	Contact Finish Thickness	Color	Number of Positions	Card Thickness (Min)	Card Thickness (Max)	Termination	Contact Finish	Pitch	Operating Temperature (Min)	Operating Temperature (Max)	Number of Rows	Gender	Card Type	Read Out	Termination Rows	Material - Insulation
EDAC Inc. 717-009-541-101	Through Hole	Copper Alloy	Cantilever	30 µin	Black	9	0.054 in	0.07 in	Press-Fit Wire Wrap	Gold	0.156 in	-40 °C	105 °C	1	Female	Non Specified Single Edge	Single	1 rows	Polyester Thermoplastic
EDAC Inc. 717-009-522-101	Through Hole	Copper Alloy	Cantilever	30 µin	Black	9	0.054 in	0.07 in	Press-Fit	Gold	0.156 in	-40 °C	105 °C	1	Female	Non Specified Single Edge	Single	1 rows	Polyester Thermoplastic

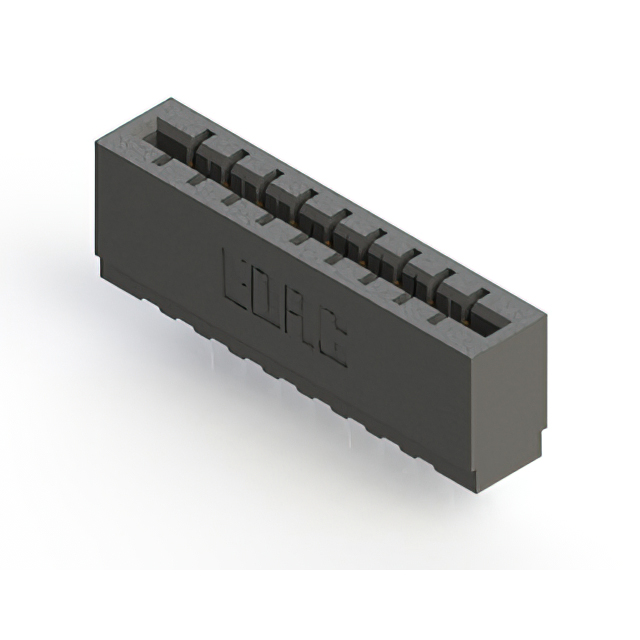

EDAC Inc. 717-009-520-101	Through Hole	Copper Alloy	Cantilever	30 µin	Black	9	0.054 in	0.07 in	Press-Fit	Gold	0.156 in	-40 °C	105 °C	1	Female	Non Specified Single Edge	Single	1 rows	Polyester Thermoplastic
