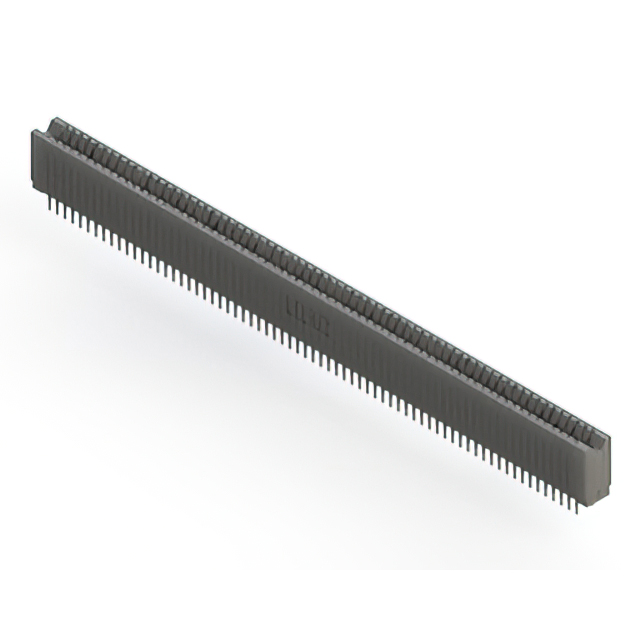

745-138-520-206

Active

EDAC Inc.

CONN EDGE DUAL FML 138POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

745-138-520-206

Active

EDAC Inc.

CONN EDGE DUAL FML 138POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	745-138-520-206

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	138
Number of Positions/Bay/Row [custom]	69
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Press-Fit
Termination Rows	2

745-138 Series

Part	Number of Positions/Bay/Row [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows	Number of Positions	Gender	Contact Material	Mounting Type	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Color	Pitch [x]	Pitch [x]	Termination	Number of Rows	Contact Finish	Read Out	Contact Finish Thickness	Contact Finish Thickness	Contact Type
EDAC Inc. 745-138-520-201	69	-40 °C	105 ░C	2	138	Female	Copper Alloy	Through Hole	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Black	2.54 mm	0.1 in	Press-Fit	2	Gold	Dual	0.76 Ám	30 Áin	Cantilever
EDAC Inc. 745-138-525-201	69	-40 °C	105 ░C	2	138	Female	Copper Alloy	Through Hole	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Black	2.54 mm	0.1 in	Press-Fit	2	Gold	Dual	0.76 Ám	30 Áin	Cantilever
EDAC Inc. 745-138-560-206	69	-40 °C	105 ░C	2	138	Female	Copper Alloy	Through Hole	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Black	2.54 mm	0.1 in	Press-Fit	2	Gold	Dual	0.76 Ám	30 Áin	Cantilever Make Before Break
EDAC Inc. 745-138-520-206	69	-40 °C	105 ░C	2	138	Female	Copper Alloy	Through Hole	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Black	2.54 mm	0.1 in	Press-Fit	2	Gold	Dual	0.76 Ám	30 Áin	Cantilever
EDAC Inc. 745-138-541-206	69	-40 °C	105 ░C	2	138	Female	Copper Alloy	Through Hole	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Black	2.54 mm	0.1 in	Press-Fit Wire Wrap	2	Gold	Dual	0.76 Ám	30 Áin	Cantilever
EDAC Inc. 745-138-522-201	69	-40 °C	105 ░C	2	138	Female	Copper Alloy	Through Hole	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Black	2.54 mm	0.1 in	Press-Fit	2	Gold	Dual	0.76 Ám	30 Áin	Cantilever
EDAC Inc. 745-138-541-201	69	-40 °C	105 ░C	2	138	Female	Copper Alloy	Through Hole	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Black	2.54 mm	0.1 in	Press-Fit Wire Wrap	2	Gold	Dual	0.76 Ám	30 Áin	Cantilever

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 17.37

Description

General part information

745-138 Series

138 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
