R4E355-AF13-09

Obsolete

ebm-papst Inc.

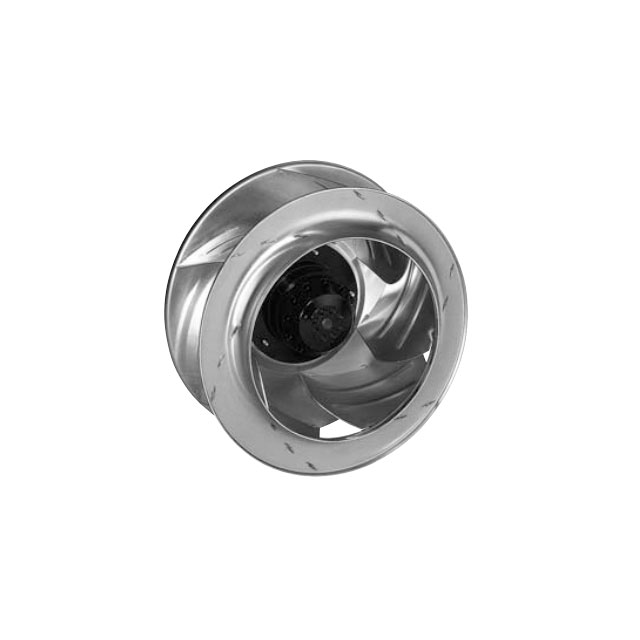

AC MOTORIZED IMPELLER CENTRIFUGAL BALL BEARING 115V 1612CFM 70DB

Search across all available documentation for this part.

Obsolete

ebm-papst Inc.

AC MOTORIZED IMPELLER CENTRIFUGAL BALL BEARING 115V 1612CFM 70DB

Technical Specifications

Parameters and characteristics for this part

Part	Bearing Type	Fan Type	Material - Blade	Size / Dimension	Size / Dimension [diameter]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Ingress Protection	Termination	RPM	Approval Agency	Current Rating (Amps)	Width [y]	Features	Weight	Weight	Air Flow	Air Flow	Noise
ebm-papst Inc. R4E355-AF05-15	Ball	Motorized Impellers	Polypropylene (PP)	Round	360 mm	270 W	-25 °C	25 °C	-25 °C	25 °C	230 VAC	IP44	4 Wire Leads with Splice Terminals	1630 RPM	CSA UL	1.2 A	165.5 mm	Capacitor Thermal Overload Protector (TOP)
ebm-papst Inc. R4E355-AN09-12	Ball	Motorized Impellers		Round	360 mm						115 VAC						171 mm	Capacitor
ebm-papst Inc. R4E355-AF05-09	Ball	Motorized Impellers	Nylon Polyamide (PA)	Round	360 mm	270 W					230 VAC		2 Wire Leads	1630 RPM			149 mm		4.4 kg	9.7 lbs	1612 CFM	45.14 m³/min	70 dB(A)
ebm-papst Inc. R4E355-AK05-06	Ball	Motorized Impellers	Aluminum	Round	360 mm	260 W	-25 °C	40 °C	-25 °C	40 °C	230 VAC		6 Wire Leads with Splice Terminals	1600 RPM	CCC	1.14 A	167 mm	Capacitor Thermal Overload Protector (TOP)
ebm-papst Inc. R4E355-AF13-09	Ball	Motorized Impellers	Nylon Polyamide (PA)	Round	360 mm	270 W					115 VAC		2 Wire Leads	1630 RPM			149 mm		4.4 kg	9.7 lbs	1612 CFM	45.14 m³/min	70 dB(A)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Motorized Impellers 115VAC Round - 360mm Dia Ball 1612.0 CFM (45.14m³/min) 2 Wire Leads

Technical documentation and resources
