629-8W8-640-7N1

Active

EDAC Inc.

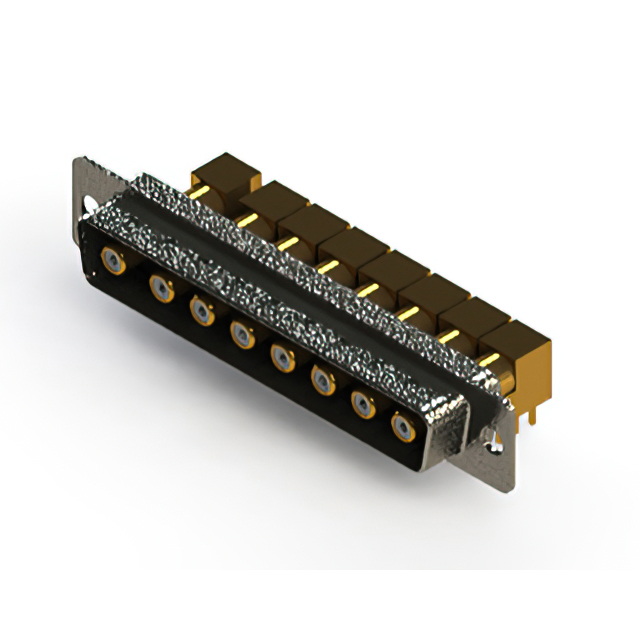

COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DC-8W8, PLUG, 8 CONTACTS, 8 COAX, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

629-8W8-640-7N1

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DC-8W8, PLUG, 8 CONTACTS, 8 COAX, SOLDER

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-8W8-640-7N1

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Coax
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	8W8
Shell Size, Connector Layout	4
Termination	Solder
Voltage Rating	125 VDC

629-8W8 Series

...

Part	Shell Size, Connector Layout	Shell Size, Connector Layout	Contact Finish	Connector Type	Dielectric Material	Mounting Type	Contact Material	Connector Style	Flange Feature	Number of Rows	Number of Positions	Contact Finish Thickness	Current Rating (Amps)	Backset Spacing	Backset Spacing	Material Flammability Rating	Termination	Features	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material, Finish	Contact Type	Voltage Rating	Color	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 629-8W8-250-3NE	8W8	4	Gold	Male Pins Plug	Polyester Thermoplastic	Through Hole Right Angle	Copper Alloy	Combo D-Sub	M3	1	8	Flash	30 A	13.2 mm	0.52 "	UL94 V-0	Solder	Grounding Indents Mounting Brackets	-55 °C	125 °C	Nickel Plated Steel	Power	125 VDC	Black
EDAC Inc. 629-8W8-250-1N1	8W8	4	Gold	Male Pins Plug	Polyester Thermoplastic	Through Hole Right Angle	Copper Alloy	Combo D-Sub	Housing/Shell (Unthreaded)	1	8	Flash	10 A	13.2 mm	0.52 "	UL94 V-0	Solder	Grounding Indents Shielded	-55 °C	125 °C	Nickel Plated Steel	Power	125 VDC	Black
EDAC Inc. 629-8W8-650-1ND	8W8	4	Gold	Male Pins Plug	Polyester Thermoplastic	Through Hole Right Angle	Copper Alloy	Combo D-Sub	M3	1	8		10 A	13.2 mm	0.52 "	UL94 V-0	Solder	Board Lock Grounding Indents Mounting Brackets	-55 °C	125 °C	Nickel Plated Steel	Power	125 VDC	Black	0.76 Ám	30 Áin
EDAC Inc. 629-8W8-250-2N3	8W8	4	Gold	Male Pins Plug	Polyester Thermoplastic	Through Hole Right Angle	Copper Alloy	Combo D-Sub	Housing/Shell (4-40)	1	8	Flash	20 A	13.2 mm	0.52 "	UL94 V-0	Solder	Board Lock Grounding Indents Mounting Brackets	-55 °C	125 °C	Nickel Plated Steel	Power	125 VDC	Black
EDAC Inc. 629-8W8-640-5NB	8W8	4	Gold	Male Pins Plug	Polyester Thermoplastic	Through Hole Right Angle	Copper Alloy	Combo D-Sub	Housing/Shell (M3)	1	8			9.4 mm	0.37 in	UL94 V-0	Solder	Board Lock Grounding Indents Mounting Brackets	-55 °C	125 °C	Nickel Plated Steel	Coax	125 VDC	Black	0.76 Ám	30 Áin
EDAC Inc. 629-8W8-640-7N1	8W8	4	Gold	Male Pins Plug	Polyester Thermoplastic	Through Hole Right Angle	Copper Alloy	Combo D-Sub	Housing/Shell (Unthreaded)	1	8			9.4 mm	0.37 in	UL94 V-0	Solder	Grounding Indents Shielded	-55 °C	125 °C	Nickel Plated Steel	Coax	125 VDC	Black	0.76 Ám	30 Áin
EDAC Inc. 629-8W8-240-5NC	8W8	4	Gold	Male Pins Plug	Polyester Thermoplastic	Through Hole Right Angle	Copper Alloy	Combo D-Sub	Housing/Shell (M3)	1	8	Flash		9.4 mm	0.37 in	UL94 V-0	Solder	Grounding Indents Mounting Brackets	-55 °C	125 °C	Nickel Plated Steel	Coax	125 VDC	Black
EDAC Inc. 629-8W8-240-4T3	8W8	4	Gold	Male Pins Plug	Polyester Thermoplastic	Through Hole Right Angle	Copper Alloy	Combo D-Sub	Housing/Shell (4-40)	1	8	Flash	40 A	13.2 mm	0.52 "	UL94 V-0	Solder	Board Lock Grounding Indents Mounting Brackets	-55 °C	125 °C		Power	125 VDC	Black
EDAC Inc. 629-8W8-250-4N6	8W8	4	Gold	Male Pins Plug	Polyester Thermoplastic	Through Hole Right Angle	Copper Alloy	Combo D-Sub	4-40	1	8	Flash	40 A	13.2 mm	0.52 "	UL94 V-0	Solder	Board Lock Grounding Indents	-55 °C	125 °C	Nickel Plated Steel	Power	125 VDC	Black
EDAC Inc. 629-8W8-240-1N4	8W8	4	Gold	Male Pins Plug	Polyester Thermoplastic	Through Hole Right Angle	Copper Alloy	Combo D-Sub	Housing/Shell (4-40)	1	8	Flash	10 A	13.2 mm	0.52 "	UL94 V-0	Solder	Grounding Indents Mounting Brackets	-55 °C	125 °C	Nickel Plated Steel	Power	125 VDC	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	250	$ 30.47
Newark	Each	1	$ 40.04
		500	$ 36.71
		1000	$ 33.88
		2500	$ 32.63
		5000	$ 28.84

Description

General part information

629-8W8 Series

8 (Coax) Position D-Sub, Combo Plug, Male Pins Connector
