PT02SE-18-32P

Active

Amphenol Industrial Operations

CONN RCPT MALE 32POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 10-101949-010

PT02SE-18-32P

Active

Amphenol Industrial Operations

CONN RCPT MALE 32POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet 10-101949-010

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PT02SE-18-32P	PT02SE Series

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial	Military, Mass Transit, Instrumentation, Aerospace, Industrial, Communication Systems
Backshell Material, Plating	Olive Drab Cadmium, Aluminum	Black Zinc Cobalt, Aluminum, Olive Drab Cadmium, Electroless Nickel
Color	Olive Drab	Olive Drab, Black, Silver
Connector Type	Receptacle, Male Pins	Receptacle, Female Sockets, Receptacle, Male Pins, Receptacle Housing
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	-	Circular
Contact Size	-	16 - 20
Contact Size	-	14 - 27
Contact Type	-	Crimp
Current Rating (Amps)	7.5 A	7.5 - 13 A
Fastening Type	Bayonet Lock	Bayonet Lock
Housing Color	-	Olive Drab
Ingress Protection	Environment Sealed	Environment Sealed, Environment Resistant
Insert Material	Neoprene	Neoprene
Mounting Feature	Flange	Flange
Note	-	Contacts Not Included
Number of Positions	-	6 - 61
Number of Positions	-	16
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	N	W, N
Primary Material	Metal	Metal
Qualification	MIL-DTL-26482 Series I	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium	Olive Drab Chromate over Cadmium, Black Zinc Cobalt, Electroless Nickel, Chromate over Cadmium
Shell Material	Aluminum	Aluminum
Shell Size - Insert	-	12-3, 14-5, 12-8, 10-6
Shell Size - Insert	-	19
Shell Size - Insert	-	14
Shell Size - Insert	-	20
Shell Size - Insert	-	16
Shell Size - Insert [Max]	32	18 - 61
Shell Size - Insert [Min]	18	14 - 24
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Type	-	For Female Sockets, For Male Pins
Voltage Rating	-	1000 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 161.48
		10	$ 148.19
		25	$ 142.49
		50	$ 137.74

PT02SE Series

CONN RCPT FMALE 3POS GOLD CRIMP

Part	Ingress Protection	Orientation	Termination	Contact Finish - Mating	Shell Size - Insert	Applications	Mounting Feature	Color	Shell Material	Qualification	Shielding	Shell Finish	Connector Type	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Material	Primary Material	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Number of Positions	Backshell Material, Plating	Current Rating (Amps)	Voltage Rating	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shell Size - Insert [Max] [diameter]	Shell Size - Insert [Min] [diameter]	Number of Positions	Type	Note	Contact Type	Contact Shape	Housing Color	Contact Size	Contact Size
Amphenol Industrial Operations PT02SE-12-3SW	Environment Sealed	W	Crimp	Gold	12-3	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Flange	Olive Drab	Aluminum	MIL-DTL-26482 Series I	Unshielded	Olive Drab Chromate over Cadmium	Receptacle, Female Sockets	Neoprene	-55 °C	125 °C	Bayonet Lock	Copper Alloy	Metal
Amphenol Industrial Operations PT02SE14-19S-027	Environment Resistant	N	Crimp	Gold		Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Flange	Black	Aluminum	MIL-DTL-26482 Series I	Unshielded	Black Zinc Cobalt	Receptacle, Female Sockets	Neoprene	-55 °C	125 °C	Bayonet Lock	Copper Alloy	Metal	19	14	19	Aluminum, Black Zinc Cobalt
Amphenol Industrial Operations PT02SE-12-10S(025)	Environment Sealed	N	Crimp	Gold		Aerospace, Industrial, Instrumentation, Mass Transit, Military	Flange	Black	Aluminum	MIL-DTL-26482 Series I	Unshielded	Black Zinc Cobalt	Receptacle, Female Sockets	Neoprene	-55 °C	125 °C	Bayonet Lock	Copper Alloy	Metal			10	Aluminum, Black Zinc Cobalt	7.5 A
Amphenol Industrial Operations PT02SE-14-19P	Environment Sealed	N	Crimp	Gold		Aerospace, Industrial, Instrumentation, Mass Transit, Military	Flange	Olive Drab	Aluminum	MIL-DTL-26482 Series I	Unshielded	Olive Drab Chromate over Cadmium	Male Pins, Receptacle	Neoprene	-55 °C	125 °C	Bayonet Lock	Copper Alloy	Metal	19	14	19	Aluminum, Olive Drab Cadmium	7.5 A
Amphenol Industrial Operations PT02SE14-5P-027	Environment Resistant	N	Crimp	Gold	14-5	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Flange	Black	Aluminum	MIL-DTL-26482 Series I	Unshielded	Black Zinc Cobalt	Male Pins, Receptacle	Neoprene	-55 °C	125 °C	Bayonet Lock	Copper Alloy	Metal				Aluminum, Black Zinc Cobalt		1000 VAC
Amphenol Industrial Operations PT02SE-16-8P	Environment Sealed	N	Crimp	Gold		Aerospace, Industrial, Instrumentation, Mass Transit, Military	Flange	Olive Drab	Aluminum	MIL-DTL-26482 Series I	Unshielded	Olive Drab Chromate over Cadmium	Male Pins, Receptacle	Neoprene	-55 °C	125 °C	Bayonet Lock	Copper Alloy	Metal			8	Aluminum, Olive Drab Cadmium	13 A
Amphenol Industrial Operations PT02SE-18-32S	Environment Sealed	N	Crimp	Gold		Aerospace, Industrial, Instrumentation, Mass Transit, Military	Flange	Olive Drab	Aluminum	MIL-DTL-26482 Series I	Unshielded	Olive Drab Chromate over Cadmium	Receptacle, Female Sockets	Neoprene	-55 °C	125 °C	Bayonet Lock	Copper Alloy	Metal				Aluminum, Olive Drab Cadmium	7.5 A		32	18
Amphenol Industrial Operations PT02SE22-21P-023	Environment Resistant	N	Crimp	Gold		Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Flange	Silver	Aluminum	MIL-DTL-26482 Series I	Unshielded	Electroless Nickel	Male Pins, Receptacle	Neoprene	-55 °C	125 °C	Bayonet Lock	Copper Alloy	Metal			21	Aluminum, Electroless Nickel			21	22
Amphenol Industrial Operations PT02SE-20-16S(025)	Environment Sealed	N	Crimp	Gold		Aerospace, Industrial, Instrumentation, Mass Transit, Military	Flange	Black	Aluminum	MIL-DTL-26482 Series I	Unshielded	Black Zinc Cobalt	Receptacle, Female Sockets	Neoprene	-55 °C	125 °C	Bayonet Lock	Copper Alloy	Metal				Aluminum, Black Zinc Cobalt	13 A				20	16	16
Amphenol Industrial Operations PT02SE-18-32P(025)	Environment Sealed	N	Crimp	Gold		Aerospace, Industrial, Instrumentation, Mass Transit, Military	Flange	Black	Aluminum	MIL-DTL-26482 Series I	Unshielded	Black Zinc Cobalt	Male Pins, Receptacle	Neoprene	-55 °C	125 °C	Bayonet Lock	Copper Alloy	Metal				Aluminum, Black Zinc Cobalt	7.5 A		32	18
Amphenol Industrial Operations PT02SE-22-21P	Environment Sealed	N	Crimp	Gold		Aerospace, Industrial, Instrumentation, Mass Transit, Military	Flange	Olive Drab	Aluminum	MIL-DTL-26482 Series I	Unshielded	Olive Drab Chromate over Cadmium	Male Pins, Receptacle	Neoprene	-55 °C	125 °C	Bayonet Lock	Copper Alloy	Metal			21	Aluminum, Olive Drab Cadmium			21	22
Amphenol Industrial Operations PT02SE-18-32P	Environment Sealed	N	Crimp	Gold		Aerospace, Industrial, Instrumentation, Mass Transit, Military	Flange	Olive Drab	Aluminum	MIL-DTL-26482 Series I	Unshielded	Olive Drab Chromate over Cadmium	Male Pins, Receptacle	Neoprene	-55 °C	125 °C	Bayonet Lock	Copper Alloy	Metal				Aluminum, Olive Drab Cadmium	7.5 A		32	18
Amphenol Industrial Operations PT02SE-12-8S	Environment Sealed	N	Crimp	Gold	12-8	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Flange	Olive Drab	Aluminum	MIL-DTL-26482 Series I	Unshielded	Olive Drab Chromate over Cadmium	Receptacle, Female Sockets	Neoprene	-55 °C	125 °C	Bayonet Lock	Copper Alloy	Metal			8	Aluminum, Olive Drab Cadmium	7.5 A
Amphenol Industrial Operations PT02SE-14-19S	Environment Sealed	N	Crimp	Gold		Aerospace, Industrial, Instrumentation, Mass Transit, Military	Flange	Olive Drab	Aluminum	MIL-DTL-26482 Series I	Unshielded	Olive Drab Chromate over Cadmium	Receptacle, Female Sockets	Neoprene	-55 °C	125 °C	Bayonet Lock	Copper Alloy	Metal	19	14	19	Aluminum, Olive Drab Cadmium	7.5 A
Amphenol Industrial Operations PT02SE-12-3SLC	Environment Resistant	N			12-3		Flange		Aluminum	MIL-DTL-26482 Series I	Unshielded	Chromate over Cadmium	Receptacle Housing	Neoprene	-55 °C	125 °C	Bayonet Lock														For Female Sockets	Contacts Not Included	Crimp	Circular	Olive Drab	16
Amphenol Industrial Operations PT02SE-14-18P	Environment Sealed	N	Crimp	Gold		Aerospace, Industrial, Instrumentation, Mass Transit, Military	Flange	Olive Drab	Aluminum	MIL-DTL-26482 Series I	Unshielded	Olive Drab Chromate over Cadmium	Male Pins, Receptacle	Neoprene	-55 °C	125 °C	Bayonet Lock	Copper Alloy	Metal			18	Aluminum, Olive Drab Cadmium	7.5 A		18	14
Amphenol Industrial Operations PT02SE-14-18S	Environment Sealed	N	Crimp	Gold		Aerospace, Industrial, Instrumentation, Mass Transit, Military	Flange	Olive Drab	Aluminum	MIL-DTL-26482 Series I	Unshielded	Olive Drab Chromate over Cadmium	Receptacle, Female Sockets	Neoprene	-55 °C	125 °C	Bayonet Lock	Copper Alloy	Metal			18	Aluminum, Olive Drab Cadmium	7.5 A		18	14
Amphenol Industrial Operations PT02SE-24-61SW	Environment Sealed	W	Crimp	Gold		Aerospace, Industrial, Instrumentation, Mass Transit, Military	Flange	Olive Drab	Aluminum	MIL-DTL-26482 Series I	Unshielded	Olive Drab Chromate over Cadmium	Receptacle, Female Sockets	Neoprene	-55 °C	125 °C	Bayonet Lock	Copper Alloy	Metal			61				61	24
Amphenol Industrial Operations PT02SE-22-41PLC	Environment Resistant	N					Flange		Aluminum	MIL-DTL-26482 Series I	Unshielded	Chromate over Cadmium	Receptacle Housing	Neoprene	-55 °C	125 °C	Bayonet Lock					41				41	22				For Male Pins	Contacts Not Included	Crimp	Circular	Olive Drab	16, 20	14, 27
Amphenol Industrial Operations PT02SE-20-16P(025)	Environment Sealed	N	Crimp	Gold		Aerospace, Industrial, Instrumentation, Mass Transit, Military	Flange	Black	Aluminum	MIL-DTL-26482 Series I	Unshielded	Black Zinc Cobalt	Male Pins, Receptacle	Neoprene	-55 °C	125 °C	Bayonet Lock	Copper Alloy	Metal				Aluminum, Black Zinc Cobalt	13 A				20	16	16
Amphenol Industrial Operations PT02SE-16-8P(025)	Environment Sealed	N	Crimp	Gold		Aerospace, Industrial, Instrumentation, Mass Transit, Military	Flange	Black	Aluminum	MIL-DTL-26482 Series I	Unshielded	Black Zinc Cobalt	Male Pins, Receptacle	Neoprene	-55 °C	125 °C	Bayonet Lock	Copper Alloy	Metal			8	Aluminum, Black Zinc Cobalt	13 A
Amphenol Industrial Operations PT02SE-20-16S	Environment Sealed	N	Crimp	Gold		Aerospace, Industrial, Instrumentation, Mass Transit, Military	Flange	Olive Drab	Aluminum	MIL-DTL-26482 Series I	Unshielded	Olive Drab Chromate over Cadmium	Receptacle, Female Sockets	Neoprene	-55 °C	125 °C	Bayonet Lock	Copper Alloy	Metal				Aluminum, Olive Drab Cadmium	13 A				20	16	16
Amphenol Industrial Operations PT02SE-22-55S(025)	Environment Sealed	N	Crimp	Gold		Aerospace, Industrial, Instrumentation, Mass Transit, Military	Flange	Black	Aluminum	MIL-DTL-26482 Series I	Unshielded	Black Zinc Cobalt	Receptacle, Female Sockets	Neoprene	-55 °C	125 °C	Bayonet Lock	Copper Alloy	Metal			55 positions	Aluminum, Black Zinc Cobalt	7.5 A		55	22
Amphenol Industrial Operations PT02SE-12-10S	Environment Sealed	N	Crimp	Gold		Aerospace, Industrial, Instrumentation, Mass Transit, Military	Flange	Olive Drab	Aluminum	MIL-DTL-26482 Series I	Unshielded	Olive Drab Chromate over Cadmium	Receptacle, Female Sockets	Neoprene	-55 °C	125 °C	Bayonet Lock	Copper Alloy	Metal			10	Aluminum, Olive Drab Cadmium	7.5 A
Amphenol Industrial Operations PT02SE-24-61P(025)	Environment Sealed	N	Crimp	Gold		Aerospace, Industrial, Instrumentation, Mass Transit, Military	Flange	Black	Aluminum	MIL-DTL-26482 Series I	Unshielded	Black Zinc Cobalt	Male Pins, Receptacle	Neoprene	-55 °C	125 °C	Bayonet Lock	Copper Alloy	Metal			61	Aluminum, Black Zinc Cobalt	7.5 A		61	24
Amphenol Industrial Operations PT02SE-10-6P	Environment Sealed	N	Crimp	Gold	10-6	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Flange	Olive Drab	Aluminum	MIL-DTL-26482 Series I	Unshielded	Olive Drab Chromate over Cadmium	Male Pins, Receptacle	Neoprene	-55 °C	125 °C	Bayonet Lock	Copper Alloy	Metal			6	Aluminum, Olive Drab Cadmium	7.5 A

Description

General part information

PT02SE Series

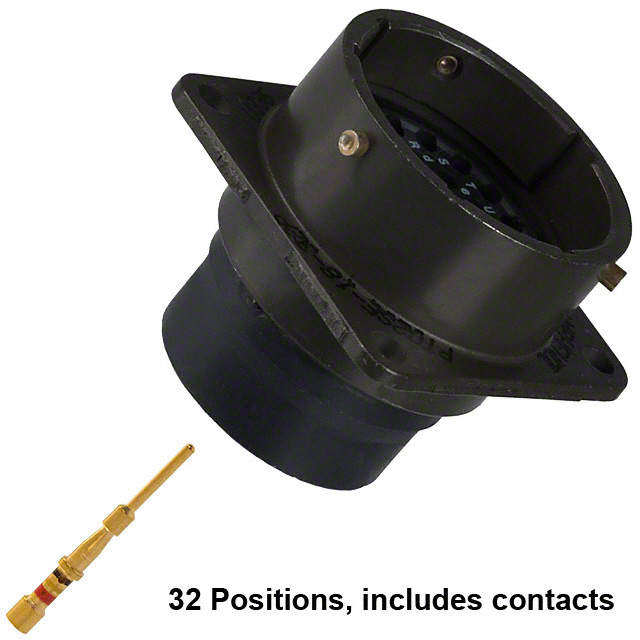

32 Position Circular Connector Receptacle, Male Pins Crimp
