VFD69383W2NNN-518R

Active

TE Connectivity Raychem Cable Protection

ANT LOW PROFILE 2-PORT SHARKFIN

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

ANT LOW PROFILE 2-PORT SHARKFIN

Technical Specifications

Parameters and characteristics for this part

Specification	VFD69383W2NNN-518R

Antenna Type	Dome
Applications	4G, LTE, 3G, ISM, 5G
Features	5.18 m
Frequency (Center/Band)	859 MHz, 3.55 GHz, 752 MHz, 1.785 GHz, 2.4 GHz, 2.045 GHz, 920 MHz, 1.92 GHz, 2.6 GHz
Frequency Group	Wide Band
Frequency Range [Max]	1.99 GHz, 894 MHz, 2.18 GHz, 1.88 GHz, 960 MHz, 2.7 GHz, 2.5 GHz, 806 MHz, 3.8 GHz
Frequency Range [Min]	880 MHz, 3.3 GHz, 2.5 GHz, 1.69 GHz, 1.85 GHz, 824 MHz, 1.91 GHz, 698 MHz, 2.3 GHz
Gain	3.5 dBi, 1 dBi, 5.1 dBic, 0.2 dBi, 4 dBi, 1.5 dBic, 2.9 dBi, 3.2 dBi, 3.6 dBi
Height (Max) [Max]	48 mm
Height (Max) [Max]	1.89 in
Ingress Protection	IP67
Number of Bands	9
Power - Max [Max]	10 W
RF Family/Standard	General ISM, Cellular
VSWR	2

Part	Antenna Type	RF Family/Standard	VSWR	Frequency Range [Max]	Frequency Range [Min]	Gain	Power - Max [Max]	Features	Number of Bands	Frequency (Center/Band)	Ingress Protection	Height (Max) [Max]	Height (Max) [Max]	Frequency Group	Applications	Termination	Features
TE Connectivity Raychem Cable Protection VFD69383B1NJN-518Q	Dome	Cellular General ISM Navigation	2	1.606 GHz 1.88 GHz 1.99 GHz 2.18 GHz 2.5 GHz 2.7 GHz 3.8 GHz 806 MHz 894 MHz 960 MHz	1.559 GHz 1.69 GHz 1.85 GHz 1.91 GHz 2.3 GHz 2.5 GHz 3.3 GHz 698 MHz 824 MHz 880 MHz	0.9 dBi 1.7 dBi 1.9 dBi 3.7 dBi 3.8 dBi 4.3 dBi 4.7 dBi 5.1 dBic 5.5 dBi 5.6 dBi 7 dBi	10 W	Cable - 5.18M LNA	12	1.561 GHz 1.575 GHz 1.602 GHz 1.785 GHz 1.92 GHz 2.045 GHz 2.4 GHz 2.6 GHz 3.55 GHz 752 MHz 859 MHz 920 MHz	IP67	48 mm	1.89 in	Wide Band	3G 4G 5G Beidou GLONASS GNSS GPS ISM LTE	SMA Male (2)
TE Connectivity Raychem Cable Protection VFD69383W2NNN-518R	Dome	Cellular General ISM	2	1.88 GHz 1.99 GHz 2.18 GHz 2.5 GHz 2.7 GHz 3.8 GHz 806 MHz 894 MHz 960 MHz	1.69 GHz 1.85 GHz 1.91 GHz 2.3 GHz 2.5 GHz 3.3 GHz 698 MHz 824 MHz 880 MHz	0.2 dBi 1 dBi 1.5 dBic 2.9 dBi 3.2 dBi 3.5 dBi 3.6 dBi 4 dBi 5.1 dBic	10 W		9	1.785 GHz 1.92 GHz 2.045 GHz 2.4 GHz 2.6 GHz 3.55 GHz 752 MHz 859 MHz 920 MHz	IP67	48 mm	1.89 in	Wide Band	3G 4G 5G ISM LTE		5.18 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

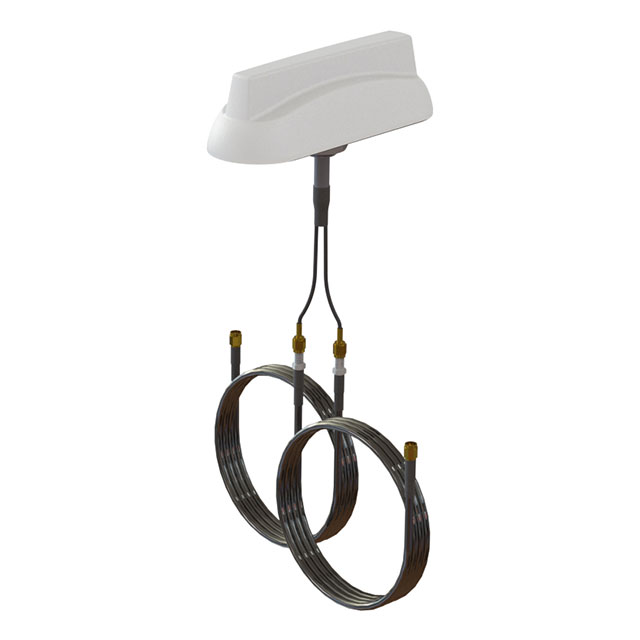

RF ANTENNA 3G, 4G, 5G, ISM, LTE Dome SMA Male Panel Mount
