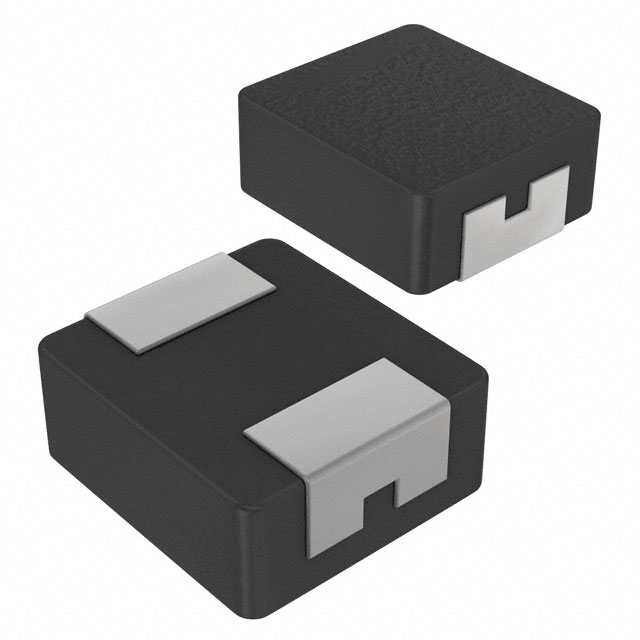

SRP4020TA-2R2M

Active

INDUCTOR POWER SHIELDED WIREWOUND 2.2UH 20% 100KHZ 10Q-FACTOR CARBONYL POWDER 4A 0.061OHM DCR 1616 T/R AUTOMOTIVE AEC-Q200

Find alt

Alpha

SRP4020TA-2R2M

Active

Bourns Inc.

INDUCTOR POWER SHIELDED WIREWOUND 2.2UH 20% 100KHZ 10Q-FACTOR CARBONYL POWDER 4A 0.061OHM DCR 1616 T/R AUTOMOTIVE AEC-Q200

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

SRP4020TA Series

The SRP4020TA series shielded Power Inductor with carbonyl powder core and tin termination. It has enamelled copper wire winding and suitable for DC/DC converters.

Technical Specifications

Parameters and characteristics for this part

Specification	SRP4020TA-2R2M

Current - Saturation (Isat)	6 A
Current Rating	4 A
DC Resistance (DCR) (Max)	61 mOhm
Frequency - Self Resonant	45 MHz
Height - Seated (Max)	0.079 in
Inductance	2.2 µH
Inductance Frequency - Test	100 kHz
Material - Core	Carbonyl Powder
Mounting Type	Surface Mount
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-40 °C
Package / Case	2-SMD
Package Name	2-SMD
Q	10
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension Length	0.175 in
Size / Dimension Width	0.16 in
Tolerance	20 %
Type	Drum Core, Wirewound

SRP4020TA Series

Part	Size / Dimension Length	Size / Dimension Width	Package / Case	Type	Operating Temperature (Min)	Operating Temperature (Max)	Current Rating	Inductance	Mounting Type	Current - Saturation (Isat)	Tolerance	Inductance Frequency - Test	Frequency - Self Resonant	Height - Seated (Max)	DC Resistance (DCR) (Max)	Shielding	Package Name	Q	Ratings	Material - Core
Bourns Inc. SRP4020TA-150M	0.175 in	0.16 in	2-SMD	Drum Core Wirewound	-40 °C	150 °C	1.5 A	15 µH	Surface Mount	1.9 A	20 %	100 kHz	17 MHz	0.079 in	374 mOhm	Shielded	2-SMD	10	AEC-Q200	Carbonyl Powder
Bourns Inc. SRP4020TA-R68M	0.175 in	0.16 in	2-SMD	Drum Core Wirewound	-40 °C	150 °C	7 A	680 nH	Surface Mount	10 A	20 %	100 kHz	100 MHz	0.079 in	19 mOhm	Shielded	2-SMD	10	AEC-Q200	Carbonyl Powder
Bourns Inc. SRP4020TA-6R8M	0.175 in	0.16 in	2-SMD	Drum Core Wirewound	-40 °C	150 °C	2.1 A	6.8 µH	Surface Mount	2.8 A	20 %	100 kHz	24 MHz	0.079 in	172 mOhm	Shielded	2-SMD	10	AEC-Q200	Carbonyl Powder
Bourns Inc. SRP4020TA-4R7M	0.175 in	0.16 in	2-SMD	Drum Core Wirewound	-40 °C	150 °C	2.6 A	4.7 µH	Surface Mount	3.5 A	20 %	100 kHz	27 MHz	0.079 in	105 mOhm	Shielded	2-SMD	10	AEC-Q200	Carbonyl Powder
Bourns Inc. SRP4020TA-2R2M	0.175 in	0.16 in	2-SMD	Drum Core Wirewound	-40 °C	150 °C	4 A	2.2 µH	Surface Mount	6 A	20 %	100 kHz	45 MHz	0.079 in	61 mOhm	Shielded	2-SMD	10	AEC-Q200	Carbonyl Powder
Bourns Inc. SRP4020TA-R56M	0.175 in	0.16 in	2-SMD	Drum Core Wirewound	-40 °C	150 °C	7.3 A	560 nH	Surface Mount	10 A	20 %	100 kHz	105 MHz	0.079 in	16 mOhm	Shielded	2-SMD	10	AEC-Q200	Carbonyl Powder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

SRP4020TA-2R2M | Datasheet

SRP1012TA, SRP4020TA Series Bulletin

Product Change Notice EN

Technical Data Sheet EN
