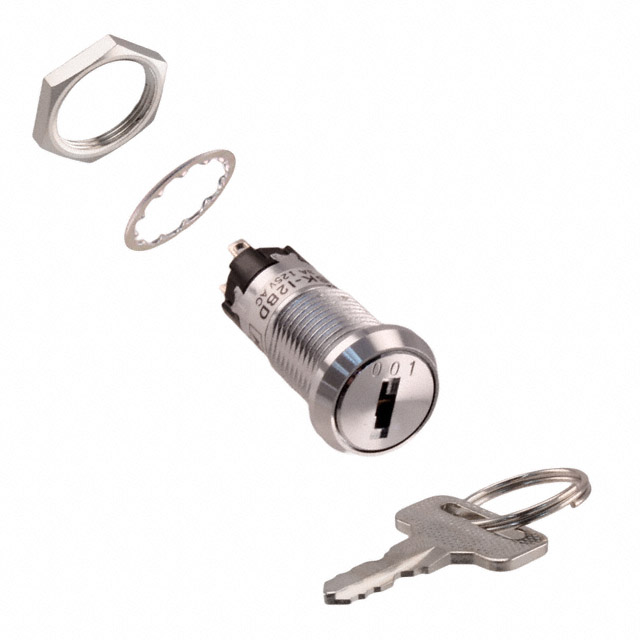

SK12BDW01-007

NKK Switches

SWITCH KEYLOCK 2POS SPDT 3A 125V

Search across all available documentation for this part.

NKK Switches

SWITCH KEYLOCK 2POS SPDT 3A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	SK12BDW01-007

Actuator Type	Flat Key
Angle of Throw	90 °
Circuit	SPDT
Contact Material	Silver (Ag)
Contact Timing	Non-Shorting
Current Rating (Amps)	3 A
Depth Behind Flange [z]	29.2 mm
Electrical Life	10000 Cycles
Features	Epoxy Sealed Terminals
Key Removable Positions	1 only
Mechanical Life	30000 Steps
Number of Positions	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Contact Material	Circuit	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Contact Timing	Electrical Life	Features	Angle of Throw	Current Rating (Amps)	Mechanical Life	Termination Style	Number of Positions	Key Removable Positions	Depth Behind Flange [z]	Actuator Type	Switch Function
NKK Switches SK12BDW01-007	Silver (Ag)	SPDT	12 mm	70 °C	-25 °C	125 V	Non-Shorting	10000 Cycles	Epoxy Sealed Terminals	90 °	3 A	30000 Steps	Solder Lug	2	1 only	29.2 mm	Flat Key	On-On
NKK Switches SK12BDW01	Silver (Ag)	SPDT	12 mm	70 °C	-25 °C	125 V	Non-Shorting	10000 Cycles	Epoxy Sealed Terminals	90 °	3 A	30000 Steps	Solder Lug	2	1 only	29.2 mm	Flat Key	On-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 2 Position SPDT 3A (AC) 125 VAC DC Panel Mount
