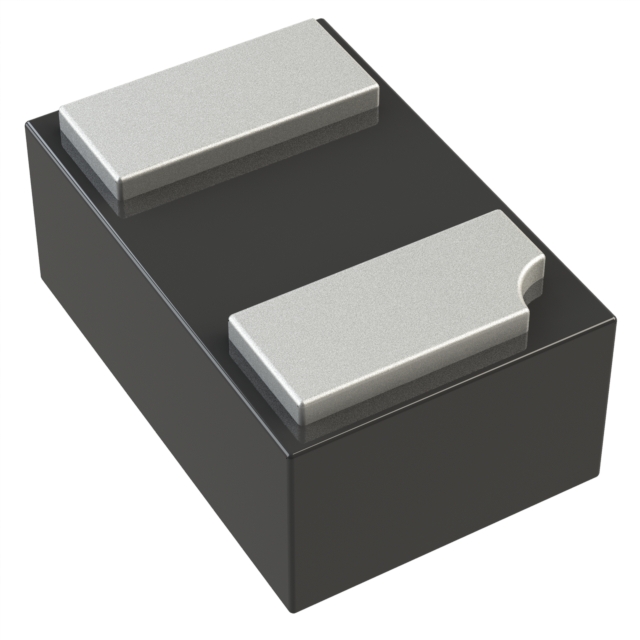

TPD6V8LP-7B

Obsolete

Diodes Inc

NRND = NOT RECOMMENDED FOR NEW DESIGN

Search across all available documentation for this part.

Obsolete

Diodes Inc

NRND = NOT RECOMMENDED FOR NEW DESIGN

Technical Specifications

Parameters and characteristics for this part

Specification	TPD6V8LP-7B

Capacitance @ Frequency	65 pF
Current - Peak Pulse (10/1000µs)	4.5 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	0402 (1006 Metric)
Power - Peak Pulse	85 W
Power Line Protection	False
Supplier Device Package	X1-DFN1006-2
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	6.4 V
Voltage - Clamping (Max) @ Ipp [Max]	19 V
Voltage - Reverse Standoff (Typ)	5 V

NRND = Not Recommended for New Design

Part	Power - Peak Pulse	Operating Temperature [Max]	Operating Temperature [Min]	Current - Peak Pulse (10/1000µs)	Voltage - Breakdown (Min) [Min]	Package / Case	Power Line Protection	Voltage - Clamping (Max) @ Ipp [Max]	Type	Mounting Type	Supplier Device Package	Voltage - Reverse Standoff (Typ)	Unidirectional Channels [custom]	Capacitance @ Frequency
Diodes Inc TPD6V8LP-7B	85 W	150 °C	-65 °C	4.5 A	6.4 V	0402 (1006 Metric)		19 V	Zener	Surface Mount	X1-DFN1006-2	5 V	1	65 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

NRND = Not Recommended for New Design

Technical documentation and resources
