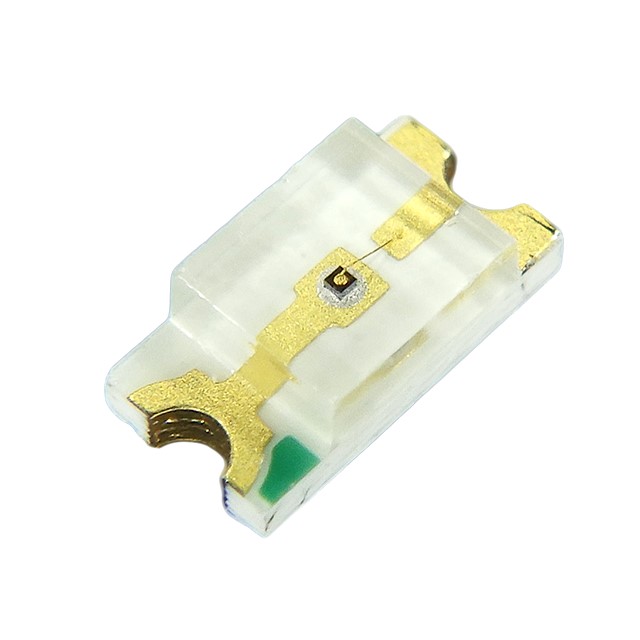

QBLP650-S3

Active

QT Brightek (QTB)

LED RED CLEAR 1206 SMD

Search across all available documentation for this part.

Active

QT Brightek (QTB)

LED RED CLEAR 1206 SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

LED RED CLEAR 1206 SMD

Part	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Lens Size [y]	Lens Size [x]	Color	Configuration	Lens Transparency	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Wavelength - Peak	Wavelength - Dominant	Package / Case	Lens Style	Height (Max) [Max]	Current - Test	Mounting Type	Viewing Angle	Lens Color	Height (Max) [Max] [z]
QT Brightek (QTB) QBLP650-S3	25 mcd	2 V	1.6 mm	2 mm	Red	Standard	Clear	1.6 mm	3.2 mm	1206	660 nm	640 nm	1206 (3216 Metric)	Rectangle with Flat Top	1.2 mm	20 mA	Surface Mount	140 °	Colorless
QT Brightek (QTB) QBLP650-IG	400 mcd	3.3 V	1.6 mm	2 mm	Green	Standard	Clear	1.6 mm	3.2 mm	1206			1206 (3216 Metric)	Rectangle with Flat Top		20 mA	Surface Mount	140 °	Colorless	1.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red 640nm LED Indication - Discrete 2.0V 1206 (3216 Metric)
