Q-2N0550008003M

Active

Amphenol Custom Cable

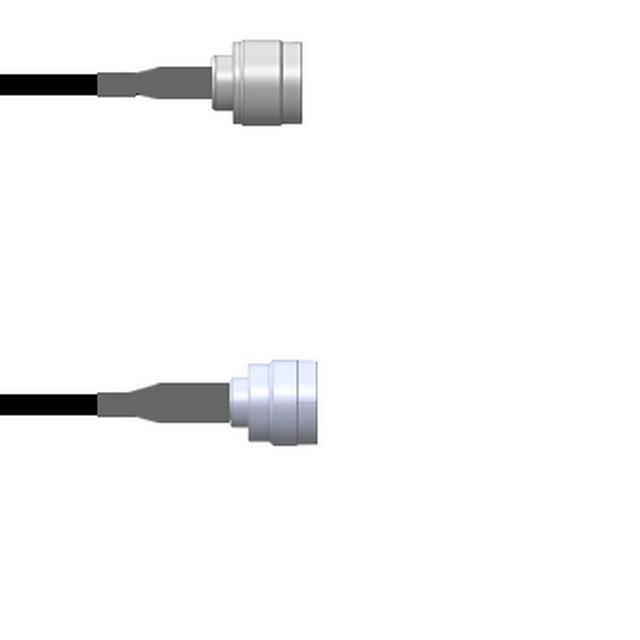

CBL ASSY NTYPE-TNC PLUG-PLG 9.8'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2N0550008003M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC PLUG-PLG 9.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2N0550008003M

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms

Q-2N0550 Series

Part	Cable Type	Features	Length [x]	Length [x]	2nd Contact Gender	Overall Impedance	Frequency - Max [Max]	1st Connector Mounting Type	2nd Connector	1st Contact Gender	2nd Connector Mounting Type	Color	Length	Length	Length	Length [x]
Amphenol Custom Cable Q-2N0550008.25M	RG-58	Shielded	9.843 "	250 mm	Male	50 Ohms	11 GHz	Free Hanging (In-Line)	TNC Plug	Male	Free Hanging (In-Line)	Black
Amphenol Custom Cable Q-2N0550008009i	RG-58	Shielded			Male	50 Ohms	11 GHz	Free Hanging (In-Line)	TNC Plug	Male	Free Hanging (In-Line)	Black	9 "	228.6 mm
Amphenol Custom Cable Q-2N0550008072i	RG-58	Shielded			Male	50 Ohms	11 GHz	Free Hanging (In-Line)	TNC Plug	Male	Free Hanging (In-Line)	Black	72 in	1.8 m	6 ft
Amphenol Custom Cable Q-2N05500081.5M	RG-58	Shielded			Male	50 Ohms	11 GHz	Free Hanging (In-Line)	TNC Plug	Male	Free Hanging (In-Line)	Black	59.1 in	1.5 m	4.9 ft
Amphenol Custom Cable Q-2N0550008.75M	RG-58	Shielded			Male	50 Ohms	11 GHz	Free Hanging (In-Line)	TNC Plug	Male	Free Hanging (In-Line)	Black	29.53 "	750 mm
Amphenol Custom Cable Q-2N0550008018i	RG-58	Shielded		457.2 mm	Male	50 Ohms	11 GHz	Free Hanging (In-Line)	TNC Plug	Male	Free Hanging (In-Line)	Black				457.2 mm
Amphenol Custom Cable Q-2N0550008024i	RG-58	Shielded			Male	50 Ohms	11 GHz	Free Hanging (In-Line)	TNC Plug	Male	Free Hanging (In-Line)	Black	24 "	609.6 mm
Amphenol Custom Cable Q-2N0550008001M	RG-58	Shielded			Male	50 Ohms	11 GHz	Free Hanging (In-Line)	TNC Plug	Male	Free Hanging (In-Line)	Black	39.4 in	1 m	3.3 ft
Amphenol Custom Cable Q-2N0550008003M	RG-58	Shielded			Male	50 Ohms	11 GHz	Free Hanging (In-Line)	TNC Plug	Male	Free Hanging (In-Line)	Black	118.1 in	3 m	9.8 '
Amphenol Custom Cable Q-2N0550008002M	RG-58	Shielded			Male	50 Ohms	11 GHz	Free Hanging (In-Line)	TNC Plug	Male	Free Hanging (In-Line)	Black	78.7 in	2 m	6.6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 81.12
		25	$ 75.58
		50	$ 70.05
		100	$ 65.31
		250	$ 61.36

Description

General part information

Q-2N0550 Series

Cable Assembly Coaxial N-Type to TNC RG-58 118.1" (3.0m) 9.8'
