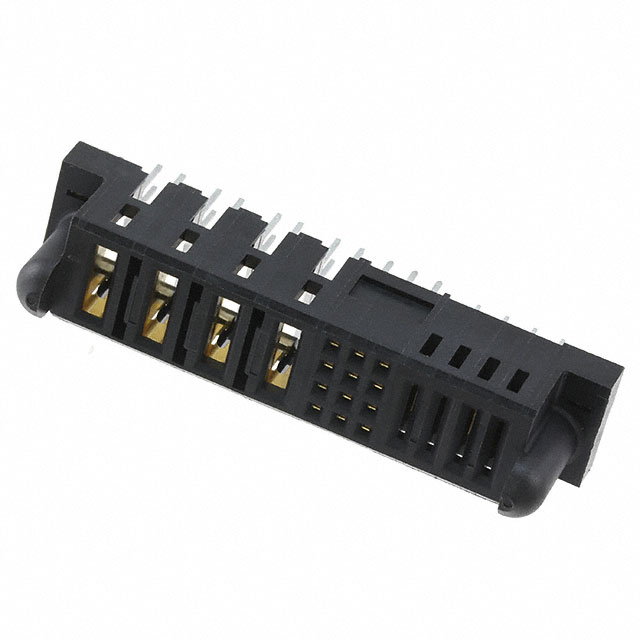

10106130-4403001LF

Active

Amphenol ICC (FCI)

CONN RCPT BLADE PWR 20POS PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet gs-12-658 Other Related Documents

10106130-4403001LF

Active

Amphenol ICC (FCI)

CONN RCPT BLADE PWR 20POS PCB

Deep-Dive with AI

DocumentsDatasheet gs-12-658 Other Related Documents

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10106130-4403001LF

Color	Black
Connector Style	Blade Power
Connector Type	Blade Sockets, Receptacle, Female Sockets
Contact Layout, Typical [custom]	8
Contact Layout, Typical [custom]	12
Features	Guide Pin, Board Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

10106130 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Termination	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Color	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Number of Positions	Pitch [x]	Pitch [x]	Connector Type	Features	Material Flammability Rating	Mounting Type	Contact Finish	Current Rating (Amps)	Number of Positions Loaded	Contact Layout, Typical
Amphenol ICC (FCI) 10106130-2003001LF	0.76 Ám	30 Áin	Blade Power	Press-Fit Solder	All	125 °C	-40 °C	Black	12	2	14	2.54 mm	0.1 in	Blade Sockets Female Sockets Receptacle	Board Lock Guide Pin	UL94 V-0	Through Hole	Gold or Gold GXT™
Amphenol ICC (FCI) 10106130-A908001LF	0.76 Ám	30 Áin	Blade Power	Solder	All	125 °C	-40 °C	Black	32	19	51	2.54 mm	0.1 in	Blade Sockets Female Sockets Receptacle	Board Lock Guide Pin	UL94 V-0	Through Hole	Gold	58 A
Amphenol ICC (FCI) 10106130-8004001LF	0.76 Ám	30 Áin	Blade Power	Solder	All	125 °C	-40 °C	Black	16	8	24	2.54 mm	0.1 in	Blade Sockets Female Sockets Receptacle	Board Lock Guide Pin	UL94 V-0	Through Hole	Gold or Gold GXT™
Amphenol ICC (FCI) 10106130-8006001LF	0.76 Ám	30 Áin	Blade Power	Solder	All	125 °C	-40 °C	Black	24	8		2.54 mm	0.1 in	Blade Sockets Female Sockets Receptacle	Guide Pin	UL94 V-0	Through Hole	Gold or Gold GXT™
Amphenol ICC (FCI) 10106130-E008001LF	0.76 Ám	30 Áin	Blade Power	Solder		125 °C	-40 °C	Black	32	14	46	2.54 mm	0.1 in	Blade Sockets Female Sockets Receptacle	Board Lock Guide Pin	UL94 V-0	Through Hole	Gold or Gold GXT™		20
Amphenol ICC (FCI) 10106130-4004001LF	0.76 Ám	30 Áin	Blade Power	Solder	All	125 °C	-40 °C	Black	16	4	20	2.54 mm	0.1 in	Blade Sockets Female Sockets Receptacle	Board Lock Guide Pin	UL94 V-0	Through Hole	Gold or Gold GXT™
Amphenol ICC (FCI) 10106130-5004001LF	0.76 Ám	30 Áin	Blade Power	Solder	All	125 °C	-40 °C	Black			21	2.54 mm	0.1 in	Blade Sockets Female Sockets Receptacle		UL94 V-0	Through Hole	Gold or Gold GXT™			16 Signal 5 Power
Amphenol ICC (FCI) 10106130-4017002LF	0.76 Ám	30 Áin	Blade Power	Solder	All	125 °C	-40 °C	Black	68	4	72	2.54 mm	0.1 in	Blade Sockets Female Sockets Receptacle	Board Lock Guide Pin	UL94 V-0	Through Hole	Gold	58 A
Amphenol ICC (FCI) 10106130-8005002LF	0.76 Ám	30 Áin	Blade Power	Solder	All	125 °C	-40 °C	Black	20	8	28	2.54 mm	0.1 in	Blade Sockets Female Sockets Receptacle	Board Lock Guide Pin	UL94 V-0	Through Hole	Gold	58 A
Amphenol ICC (FCI) 10106130-4403001LF			Blade Power	Solder	All			Black	12	8	20	2.54 mm	0.1 in	Blade Sockets Female Sockets Receptacle	Board Lock Guide Pin	UL94 V-0	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	288	$ 7.91

Description

General part information

10106130 Series

20 Connector Receptacle, Female Sockets and Blade Sockets Through Hole Black Blade Power
