787317-4

Active

TE Connectivity AMP Connectors

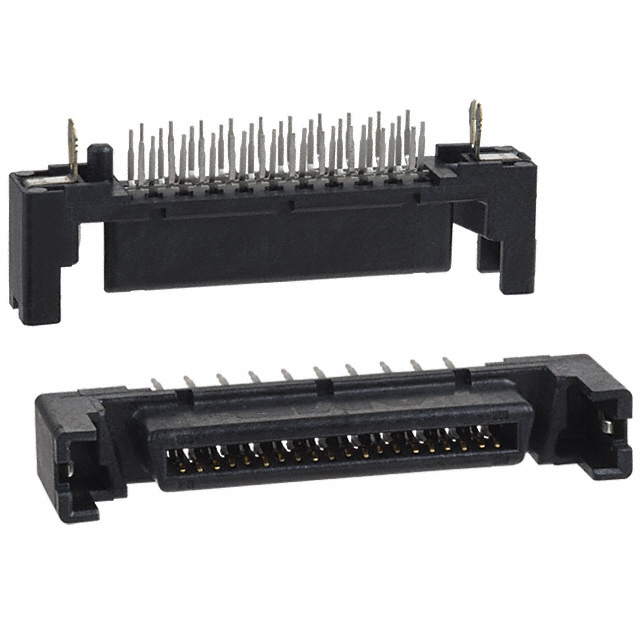

CONN SCA-2 RCPT 40POS VERT SLDR

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SCA-2 RCPT 40POS VERT SLDR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	787317-4	787317 Series

Connector Style	Outer Shroud Contacts	Outer Shroud Contacts
Connector Type	Receptacle	Receptacle
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Board Guide, Board Lock	Board Guide, Latch Lock, Board Lock
Mounting Type	Through Hole	Through Hole
Number of Positions	40	40
Number of Rows	2	2
Termination	Solder	Solder
Type	SCA-2	SCA-2

CONN RCPT 40POS VERT SOLDER

Part	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Features	Connector Style	Contact Finish	Connector Type	Number of Rows	Termination	Type
TE Connectivity AMP Connectors 787317-1	40	0.76 Ám	30 Áin	Through Hole	Board Guide, Board Lock, Latch Lock	Outer Shroud Contacts	Gold	Receptacle	2	Solder
TE Connectivity AMP Connectors 787317-4	40	0.76 Ám	30 Áin	Through Hole	Board Guide, Board Lock	Outer Shroud Contacts	Gold	Receptacle	2	Solder	SCA-2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Receptacle Connector SCA-2 Through Hole Solder
