LTM4671IY#PBF
ActiveQUAD DC/DC ΜMODULE REGULATOR WITH CONFIGURABLE DUAL 12A, DUAL 5A OUTPUT ARRAY
Deep-Dive with AI
Search across all available documentation for this part.
LTM4671IY#PBF
ActiveQUAD DC/DC ΜMODULE REGULATOR WITH CONFIGURABLE DUAL 12A, DUAL 5A OUTPUT ARRAY
Technical Specifications
Parameters and characteristics for this part
| Specification | LTM4671IY#PBF |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 5 A, 12 A |
| Features | Remote Sense, Adjustable Output |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 16 mm |
| Size / Dimension [x] | 0.63 " |
| Size / Dimension [y] | 9.5 mm |
| Size / Dimension [y] | 0.37 " |
| Size / Dimension [z] | 0.19 in |
| Size / Dimension [z] | 4.9 mm |

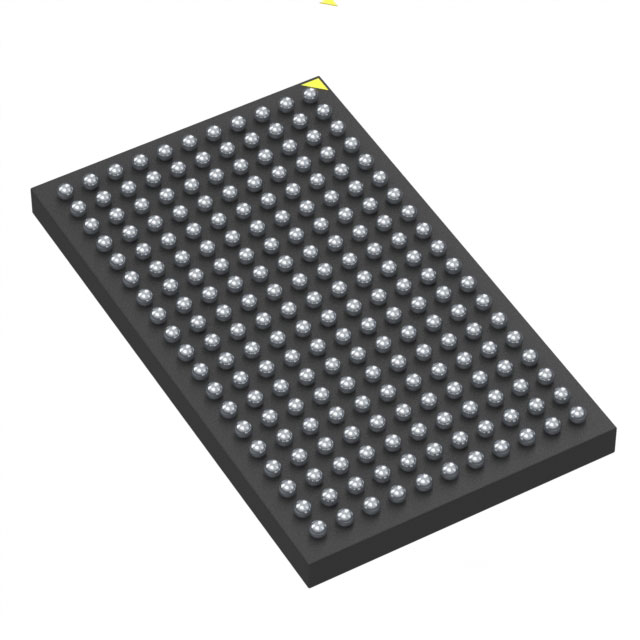

| Supplier Device Package | 209-BGA |
| Supplier Device Package [x] | 16 |
| Supplier Device Package [y] | 9.5 |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 20 V |
| Voltage - Input (Min) [Min] | 3.1 V |
| Voltage - Output 1 [Max] | 3.3 V |
| Voltage - Output 1 [Min] | 0.6 V |
| Voltage - Output 2 [Max] | 3.3 V |
| Voltage - Output 2 [Min] | 0.6 V |
| Voltage - Output 3 [Max] | 5.5 V |
| Voltage - Output 3 [Min] | 0.6 V |
| Voltage - Output 4 [Max] | 5.5 V |
| Voltage - Output 4 [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 60.25 | |
| 10 | $ 46.00 | |||
| 25 | $ 44.48 | |||
Description
General part information
LTM4671 Series
The LTM4671 is a quad DC/DC step-down µModule (micromodule) regulator offering dual 12A and dual 5A output. Included in the package are the switching controllers, power FETs, inductors and support components. Operating over an input voltage range of 3.1V to 20V, the LTM4671 supports an output voltage range of 0.6V to 3.3V for two 12A channels and 0.6V to 5.5V for two 5A channels, each set by a single external resistor. Only bulk input and output capacitors are needed.Fault protection features include overvoltage, overcurrent and overtemperature protection. The LTM4671 is offered in 9.5mm × 16mm × 4.72mm BGA package.ApplicationsMultirail Point-of-Load RegulationFPGAs, DSPs and ASICs Applications
