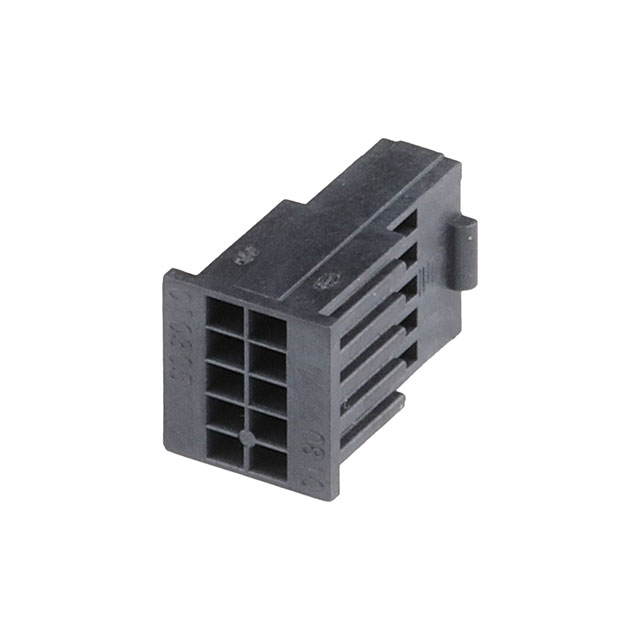

ISDF-05-D-L

Active

Samtec Inc.

CONNECTOR HOUSING, ISDF SERIES, RECEPTACLE, 10 POSITIONS, 1.27 MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONNECTOR HOUSING, ISDF SERIES, RECEPTACLE, 10 POSITIONS, 1.27 MM

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Contact Type	Number of Positions	Pitch [x]	Pitch [x]	Color	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Termination	Insulation Material	Note	Mounting Type	Features	Row Spacing	Row Spacing
Samtec Inc. ISDF-05-D-DS	2	Female Socket	10	0.05 in	1.27 mm	Black	Latch Lock	-55 °C	125 °C	Insulator	Crimp	Liquid Crystal Polymer (LCP)	Contacts Not Included	Free Hanging (In-Line)	Mating Flange	1.27 mm	0.05 in
Samtec Inc. ISDF-05-D	2	Female Socket	10	0.05 in	1.27 mm	Black	Latch Lock	-55 °C	125 °C	Insulator	Crimp	Liquid Crystal Polymer (LCP)	Contacts Not Included	Free Hanging (In-Line)		1.27 mm	0.05 in
Samtec Inc. ISDF-05-S-R	1	Female Socket		0.05 in	1.27 mm	Black	Latch Lock	-55 °C	125 °C	Insulator	Crimp	Liquid Crystal Polymer (LCP)	Contacts Not Included	Free Hanging (In-Line)
Samtec Inc. ISDF-05-D-R	2	Female Socket	10	0.05 in	1.27 mm	Black	Latch Lock	-55 °C	125 °C	Insulator	Crimp	Liquid Crystal Polymer (LCP)	Contacts Not Included	Free Hanging (In-Line)		1.27 mm	0.05 in
Samtec Inc. ISDF-05-D-L	2	Female Socket	10	0.05 in	1.27 mm	Black	Friction Lock	-55 °C	125 °C	Insulator	Crimp	Liquid Crystal Polymer (LCP)	Contacts Not Included	Free Hanging (In-Line)		1.27 mm	0.05 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Rectangular Connectors - Housings Insulator Black 0.050" (1.27mm)
