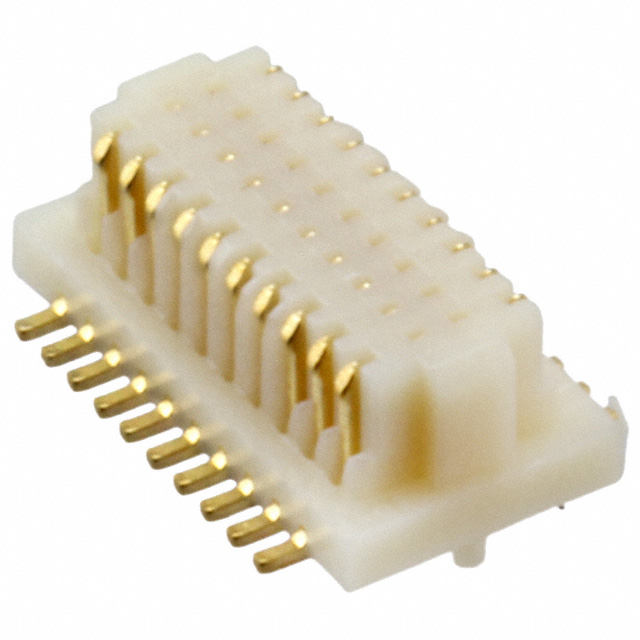

20R-JMCS-G-B-TF(S)

Obsolete

JST Sales America Inc.

CONN RCPT 20POS SMD GOLD

Search across all available documentation for this part.

Obsolete

JST Sales America Inc.

CONN RCPT 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	20R-JMCS-G-B-TF(S)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Features	Board Guide
Height Above Board [z]	0.091 in
Height Above Board [z]	2.3 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Mounting Type	Connector Type	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish	Number of Rows	Height Above Board [z]	Height Above Board [z]	Features	Mated Stacking Heights
JST Sales America Inc. 20R-JMCS-G-TF(NSA)	Surface Mount	Center Strip Contacts Receptacle	20	0.5 mm	0.02 in	Gold	2	0.091 in	2.3 mm
JST Sales America Inc. 20R-JMCS-G-B-TF(S)	Surface Mount	Center Strip Contacts Receptacle	20	0.5 mm	0.02 in	Gold	2	0.091 in	2.3 mm	Board Guide
JST Sales America Inc. 20R-JMCS-G-B-TF(NSA)	Surface Mount	Center Strip Contacts Receptacle	20	0.5 mm	0.02 in	Gold	2	0.091 in	2.3 mm	Board Guide
JST Sales America Inc. 20R-JMCS-G-TF(S)	Surface Mount	Center Strip Contacts Receptacle	20	0.5 mm	0.02 in	Gold	2	0.091 in	2.3 mm	Solder Retention	3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
