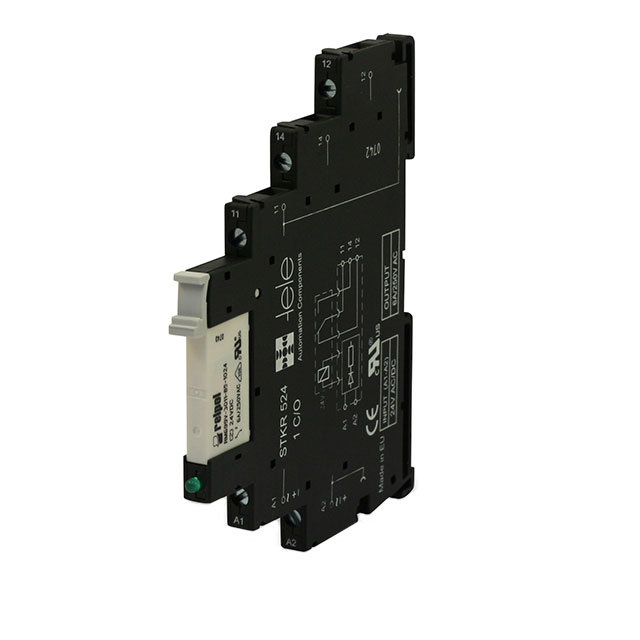

STKR 524

Active

Aim Dynamics

RELAY GEN PURPOSE SPDT 6A 24V

Search across all available documentation for this part.

Active

Aim Dynamics

RELAY GEN PURPOSE SPDT 6A 24V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE SPDT 6A 24V

Part	Contact Material	Termination Style	Switching Voltage [Max]	Release Time	Features	Contact Rating (Current)	Coil Voltage	Operate Time	Contact Form	Mounting Type	Relay Type	Operating Temperature [Min]	Operating Temperature [Max]	Must Release Voltage	Must Operate Voltage	Coil Type
Aim Dynamics STKR 524	Silver Tin Oxide (AgSnO)	Screw Terminal	250 VDC, 400 VAC	10 ms	Diode, Lighted Indicator	8 A	24 VAC	8 ms	SPDT (1 Form C)	DIN Rail	General Purpose	-40 °C	55 °C	4.8 VAC	19.2 VAC	Non Latching

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 24VAC/DC Coil DIN Rail

Technical documentation and resources

No documents available
