796981-6

Active

TE Connectivity AMP Connectors

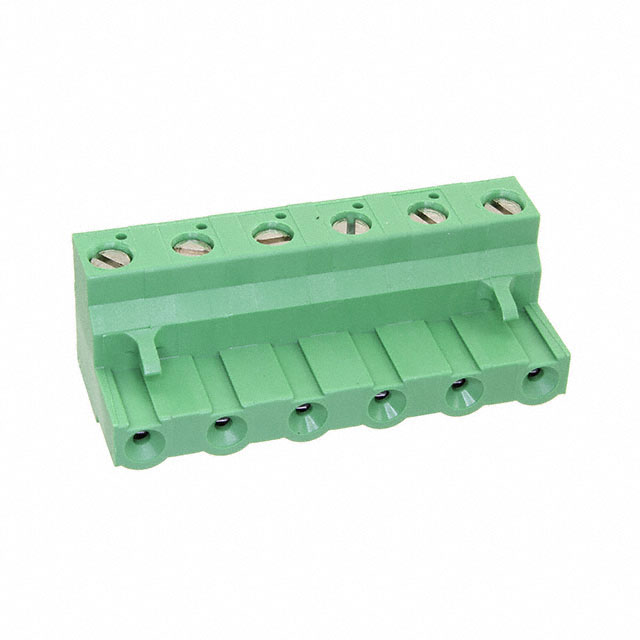

TERM BLOCK PLUG 6POS STR 7.62MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

796981-6

Active

TE Connectivity AMP Connectors

TERM BLOCK PLUG 6POS STR 7.62MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	796981-6	796981 Series

Color	Green	Green
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Mating Finish	Tin	Tin
Insulation Height	0.61 in	0.61 in
Insulation Height	15.49 mm	15.49 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	6	4 - 10
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.3 in	0.3 in
Pitch [x]	7.62 mm	7.62 mm
Positions Per Level	6	3 - 10
Screw Size	M3	M3
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Torque - Screw	0.79 Nm	0.79 Nm
Torque - Screw	7 Lb-In	7 Lb-In
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	30 AWG	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm˛ [Max]	3 mm˛	3 mm˛
Wire Gauge or Range - mm˛ [Min]	0.05 mm˛	0.05 mm˛
Wire Gauge or Range - mm²	-	0.05 mm²
Wire Gauge or Range - mm²	-	3 mm²
Wire Strip Length [Max]	7.5 mm	7.5 mm
Wire Strip Length [Min]	6 mm	6 mm

796981 Series

TERM BLOCK PLUG 4POS STR 7.62MM

Part	Voltage - UL	Color	Number of Positions	Material Flammability Rating	Screw Size	Number of Levels	Torque - Screw	Torque - Screw	Pitch [x]	Pitch [x]	Positions Per Level	Contact Material	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Strip Length [Max]	Wire Strip Length [Min]	Mounting Type	Type	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Contact Mating Finish	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]
TE Connectivity AMP Connectors 796981-4	300 V	Green	4	UL94 V-0	M3	1	0.79 Nm	7 Lb-In	0.3 in	7.62 mm	4	Phosphor Bronze	30 AWG	12 AWG	7.5 mm	6 mm	Free Hanging (In-Line)	Plug, Female Sockets	0.61 in	15.49 mm	-40 °C	110 °C	Screw - Rising Cage Clamp	3 mm˛	0.05 mm˛	Tin
TE Connectivity AMP Connectors 796981-6	300 V	Green	6	UL94 V-0	M3	1	0.79 Nm	7 Lb-In	0.3 in	7.62 mm	6	Phosphor Bronze	30 AWG	12 AWG	7.5 mm	6 mm	Free Hanging (In-Line)	Plug, Female Sockets	0.61 in	15.49 mm	-40 °C	110 °C	Screw - Rising Cage Clamp	3 mm˛	0.05 mm˛	Tin
TE Connectivity AMP Connectors 796981-8	300 V	Green	8	UL94 V-0	M3	1	0.79 Nm	7 Lb-In	0.3 in	7.62 mm	8	Phosphor Bronze	30 AWG	12 AWG	7.5 mm	6 mm	Free Hanging (In-Line)	Plug, Female Sockets	0.61 in	15.49 mm	-40 °C	110 °C	Screw - Rising Cage Clamp			Tin	0.05 mm²	3 mm²
TE Connectivity AMP Connectors 796981-5	300 V	Green		UL94 V-0	M3	1	0.79 Nm	7 Lb-In	0.3 in	7.62 mm	5	Phosphor Bronze	30 AWG	12 AWG	7.5 mm	6 mm	Free Hanging (In-Line)	Plug, Female Sockets	0.61 in	15.49 mm	-40 °C	110 °C	Screw - Rising Cage Clamp			Tin	0.05 mm²	3 mm²
TE Connectivity AMP Connectors 796981-9	300 V	Green	9	UL94 V-0	M3	1	0.79 Nm	7 Lb-In	0.3 in	7.62 mm	9	Phosphor Bronze	30 AWG	12 AWG	7.5 mm	6 mm	Free Hanging (In-Line)	Plug, Female Sockets	0.61 in	15.49 mm	-40 °C	110 °C	Screw - Rising Cage Clamp			Tin	0.05 mm²	3 mm²
TE Connectivity AMP Connectors 796981-3	300 V	Green		UL94 V-0	M3	1	0.79 Nm	7 Lb-In	0.3 in	7.62 mm	3	Phosphor Bronze	30 AWG	12 AWG	7.5 mm	6 mm	Free Hanging (In-Line)	Plug, Female Sockets	0.61 in	15.49 mm	-40 °C	110 °C	Screw - Rising Cage Clamp			Tin	0.05 mm²	3 mm²
TE Connectivity AMP Connectors 1-796981-0	300 V	Green	10	UL94 V-0	M3	1	0.79 Nm	7 Lb-In	0.3 in	7.62 mm	10	Phosphor Bronze	30 AWG	12 AWG	7.5 mm	6 mm	Free Hanging (In-Line)	Plug, Female Sockets	0.61 in	15.49 mm	-40 °C	110 °C	Screw - Rising Cage Clamp	3 mm˛	0.05 mm˛	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	800	$ 3.68

Description

General part information

796981 Series

6 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line)
