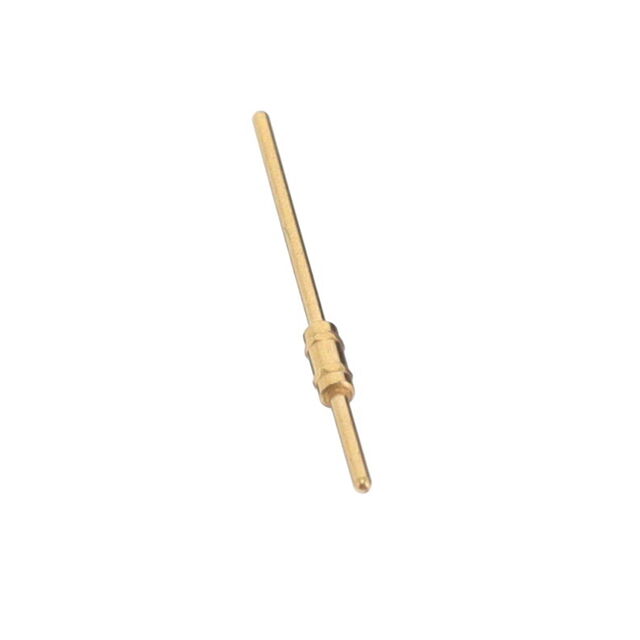

4006-2-00-34-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.016DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
4006-2-00-34-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.016DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4006-2-00-34-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Brass Alloy |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.118 in |
| Length - Above Flange [x] | 3 mm |
| Length - Below Flange [x] | 7.32 mm |
| Length - Below Flange [x] | 0.288 in |
| Length - Overall [x] | 12.42 mm |
| Length - Overall [x] | 0.489 in |
| Mounting Hole Diameter [diameter] | 0.86 mm |
| Mounting Hole Diameter [diameter] | 0.034 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.41 mm |
| Pin Size - Above Flange [diameter] | 0.016 in |
| Pin Size - Below Flange [diameter] | 0.016 in |
| Pin Size - Below Flange [diameter] | 0.41 mm |
| Terminal Style | Double End |
| Terminal Type | PC Pin |
| Termination | Press-Fit, Hex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.21 | |
| 10 | $ 1.03 | |||
| 25 | $ 0.98 | |||
| 50 | $ 0.96 | |||
| 100 | $ 0.92 | |||
| 250 | $ 0.84 | |||
| 500 | $ 0.75 | |||
| 1000 | $ 0.67 | |||
| 3000 | $ 0.61 | |||
Description
General part information
4006-2 Series
PC Pin Terminal Connector Through Hole Gold 0.016" (0.41mm) Dia
Documents
Technical documentation and resources
No documents available
