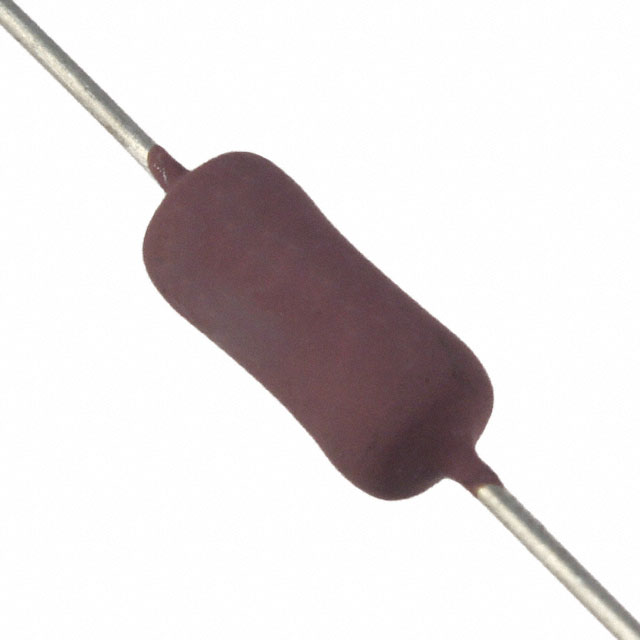

PWR4522AS47R0JA

Obsolete

Bourns Inc.

RES 47 OHM 5% 3W AXIAL

Search across all available documentation for this part.

Obsolete

Bourns Inc.

RES 47 OHM 5% 3W AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	PWR4522AS47R0JA

Composition	Wirewound
Features	Pulse Withstanding, Flame Proof, Fusible, Safety
Number of Terminations	2
Operating Temperature [Max]	350 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Power (Watts)	3 W
Resistance	47 Ohms
Size / Dimension [diameter]	5.5 mm
Size / Dimension [diameter]	0.217 in
Size / Dimension [x]	11.5 mm
Size / Dimension [x]	0.453 "
Supplier Device Package	Axial
Temperature Coefficient	90 ppm/°C
Tolerance	5 %

Part	Supplier Device Package	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Number of Terminations	Tolerance	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Composition	Features	Temperature Coefficient	Resistance
Bourns Inc. PWR4522AS15R0JA	Axial	5.5 mm	11.5 mm	0.453 "	0.217 in	2	5 %	3 W	350 °C	-55 °C	Axial	Wirewound	Flame Proof Fusible Pulse Withstanding Safety	90 ppm/°C	15 Ohms
Bourns Inc. PWR4522AS47R0JA	Axial	5.5 mm	11.5 mm	0.453 "	0.217 in	2	5 %	3 W	350 °C	-55 °C	Axial	Wirewound	Flame Proof Fusible Pulse Withstanding Safety	90 ppm/°C	47 Ohms
Bourns Inc. PWR4522AS10R0JA	Axial	5.5 mm	11.5 mm	0.453 "	0.217 in	2	5 %	3 W	350 °C	-55 °C	Axial	Wirewound	Flame Proof Fusible Pulse Withstanding Safety	90 ppm/°C	10 Ohms
Bourns Inc. PWR4522AS1200JA	Axial	5.5 mm	11.5 mm	0.453 "	0.217 in	2	5 %	3 W	350 °C	-55 °C	Axial	Wirewound	Flame Proof Fusible Pulse Withstanding Safety	90 ppm/°C	120 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

47 Ohms ±5% 3W Through Hole Resistor Axial Flame Proof, Fusible, Pulse Withstanding, Safety Wirewound
