5500.2084

Active

SCHURTER Inc.

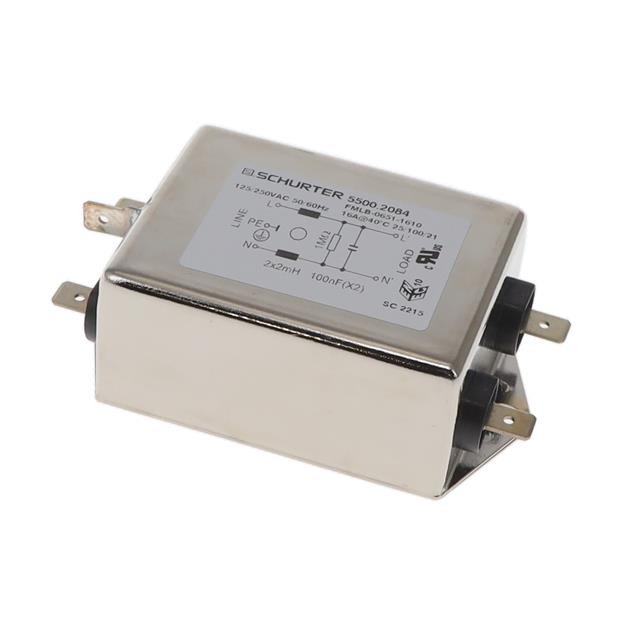

POWER LINE FILTERS 1-STAGE MED 16A FMLB

Search across all available documentation for this part.

Active

SCHURTER Inc.

POWER LINE FILTERS 1-STAGE MED 16A FMLB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5500.2084	FMLB Series

Applications	Medical	General Purpose, Medical
Approval Agency	cURus, VDE, ENEC	cURus, VDE, ENEC
Configuration	Single Stage	Single Stage
Current	16 A	6 - 16 A
Filter Type	Single Phase	Single Phase
Frequency - Operating [Max]	60 Hz	60 Hz
Frequency - Operating [Min]	50 Hz	50 Hz
Inductance	2 mH	1.8 - 2 mH
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Termination Style	Quick Connect	Quick Connect
Voltage - Rated AC	125 V, 250 V	125 - 250 V

Power Line Filters 1-STAGE MED 16A FMLB

Part	Frequency - Operating [Max]	Frequency - Operating [Min]	Current	Applications	Voltage - Rated AC	Configuration	Operating Temperature [custom]	Approval Agency	Filter Type	Termination Style	Mounting Type	Inductance
SCHURTER Inc. 5500.2031	60 Hz	50 Hz	6 A	General Purpose	125 V, 250 V	Single Stage	-25 °C, 100 °C	cURus, ENEC, VDE	Single Phase	Quick Connect	Chassis Mount	1.8 mH
SCHURTER Inc. 5500.2084	60 Hz	50 Hz	16 A	Medical	125 V, 250 V	Single Stage	-25 °C, 100 °C	cURus, ENEC, VDE	Single Phase	Quick Connect	Chassis Mount	2 mH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Line Filters 1-STAGE MED 16A FMLB
