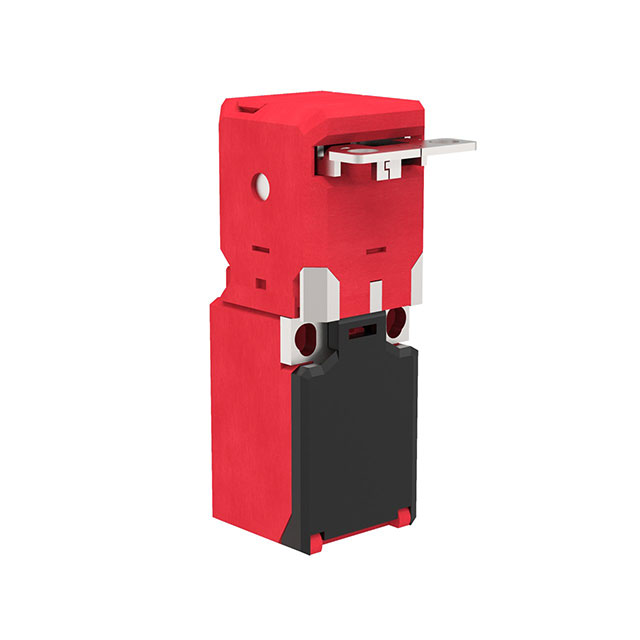

SI-LS83SRAE

Active

BANNER ENGINEERING

LIMIT SWITCH: STANDARD IN-LINE RIGHT ANGLE

Search across all available documentation for this part.

Active

BANNER ENGINEERING

LIMIT SWITCH: STANDARD IN-LINE RIGHT ANGLE

Technical Specifications

Parameters and characteristics for this part

Specification	SI-LS83SRAE

Actuator Type	Panel Disconnect
Approval Agency	UL, CSA, CE
Circuit	DPST-NC
Conduit Thread Size	M16
Ingress Protection	IP65 - Dust Tight, Water Resistant
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Termination Style	Screw Terminal
Type	Non-Locking
Voltage Rating	24 VDC, 110 VAC

Part	Type	Conduit Thread Size	Actuator Type	Voltage Rating	Approval Agency	Circuit	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style
BANNER ENGINEERING SI-LS83SE	Non-Locking	M16	Panel Disconnect	24 VDC 110 VAC	CE CSA UL	DPST-NC	IP65 - Dust Tight Water Resistant	-30 ░C	80 C	Screw Terminal
BANNER ENGINEERING SI-LS83D	Non-Locking	M16	Panel Disconnect	24 VDC 110 VAC	CE CSA UL	DPST-NO/NC	IP65 - Dust Tight Water Resistant	-30 ░C	80 C	Screw Terminal
BANNER ENGINEERING SI-LS83SRAE	Non-Locking	M16	Panel Disconnect	24 VDC 110 VAC	CE CSA UL	DPST-NC	IP65 - Dust Tight Water Resistant	-30 ░C	80 C	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 80.00
Newark	Each	1	$ 82.00

General part information

LIMIT SWITCH: STANDARD IN-LINE RIGHT ANGLE
