1054881-1

Active

TE Connectivity AMP Connectors

CONN ADAPT JACK-JACK OSM 50 OHM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN ADAPT JACK-JACK OSM 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	1054881-1

Adapter Series	OSM to OSM
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms

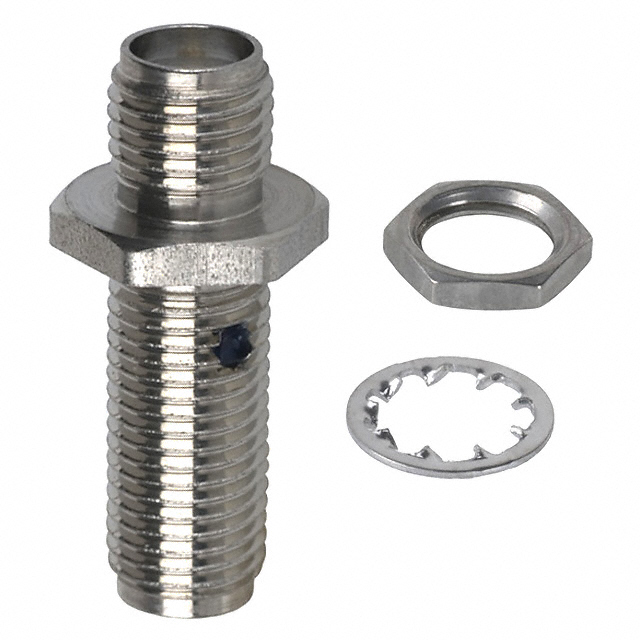

Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

CONN ADAPT JACK-JACK OSM 50 OHM

Part	Adapter Type	Body Material	Center Contact Plating	Convert To (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Conversion Type	Frequency - Max [Max]	Adapter Series	Center Gender	Impedance	Convert From (Adapter End)	Dielectric Material	Includes	Mounting Feature	Center Contact Material	Style
TE Connectivity AMP Connectors 1054881-1	Jack to Jack	Stainless Steel	Gold	Female Socket, SMA Jack	-65 ░C	165 °C	500	Same Series	18 GHz	OSM to OSM	Female to Female	50 Ohms	Female Socket, SMA Jack	Polytetrafluoroethylene (PTFE)	1 Connector, 1 Lockwasher, 1 Nut	Bulkhead	Beryllium Copper	Straight

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
