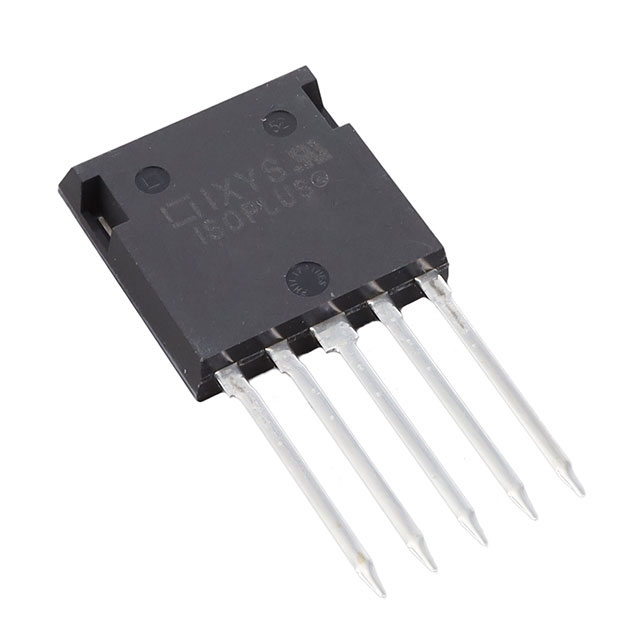

CLA40P1200FC

Active

IXYS

MOD THYRISTOR DUAL 1200V I4-PAC

Search across all available documentation for this part.

Active

IXYS

MOD THYRISTOR DUAL 1200V I4-PAC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CLA40P1200FC	CLA40 Series

Configuration	-	Single
Current - Gate Trigger (Igt) (Max) [Max]	50 mA	40 - 50 mA
Current - Hold (Ih) (Max) [Max]	100 mA	50 - 100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	700 A	215 - 700 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	650 A	200 - 650 A
Current - On State (It (AV)) (Max) [Max]	40 A	40 A
Current - On State (It (RMS)) (Max)	-	44 A
Current - On State (It (RMS)) (Max) [Max]	63 A	63 A
Mounting Type	Through Hole	Surface Mount, Through Hole
Number of SCRs, Diodes	2 SCRs	2 SCRs
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	i4-Pac™-5	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3, TO-220-3, i4-Pac™-5
Structure	Series Connection - All SCRs	Series Connection - All SCRs
Supplier Device Package	-	TO-263HV, TO-220-3
Triac Type	-	Standard
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.5 V	1.3 - 1.5 V
Voltage - Off State	1.2 kV	1.2 kV

TRIAC 1.2KV 44A TO263HV

Part	Current - Gate Trigger (Igt) (Max) [Max]	Triac Type	Package / Case	Mounting Type	Voltage - Off State	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Hold (Ih) (Max) [Max]	Configuration	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Current - On State (It (RMS)) (Max)	Voltage - Gate Trigger (Vgt) (Max) [Max]	Number of SCRs, Diodes	Structure	Current - On State (It (AV)) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]
IXYS CLA40MT1200NPZ-TRL	40 mA	Standard	D2PAK (2 Leads + Tab), TO-263-3, TO-263AB	Surface Mount	1.2 kV	200 A	215 A	50 mA	Single	TO-263HV	150 °C	-40 °C	44 A	1.3 V
IXYS CLA40MT1200NPB	40 mA	Standard	TO-220-3	Through Hole	1.2 kV	200 A	215 A	50 mA	Single	TO-220-3	150 °C	-40 °C	44 A	1.3 V
IXYS CLA40P1200FC	50 mA		i4-Pac™-5	Through Hole	1.2 kV	650 A	700 A	100 mA			150 °C	-40 °C		1.5 V	2 SCRs	Series Connection - All SCRs	40 A	63 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR Module 1.2 kV 63 A Series Connection - All SCRs Through Hole i4-Pac™-5
