6EP13373BA00

Active

Siemens

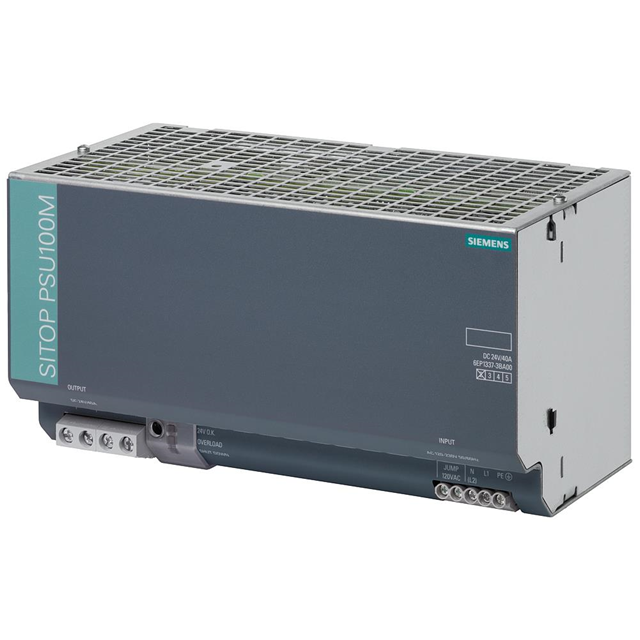

AC/DC DIN RAIL SUPPLY 24V

Search across all available documentation for this part.

Active

Siemens

AC/DC DIN RAIL SUPPLY 24V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	AC Voltage - Input [Min]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Efficiency	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Applications	Voltage - Output 1	Standard Number	Current - Output (Max) [Max]	Features	Number of Outputs
Siemens 6EP13373BA00	70 °C	0 °C	AC	176 VAC	264 VAC	85 VAC	132 VAC	88 %	CE CSA cULus EAC UL	9.45 "	125 mm	4.92 in	125 mm	240 mm	4.92 in	Industrial ITE (Commercial)	24 V	60950-1 UL 508	40 A	Adjustable Output IP20	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 938.80
