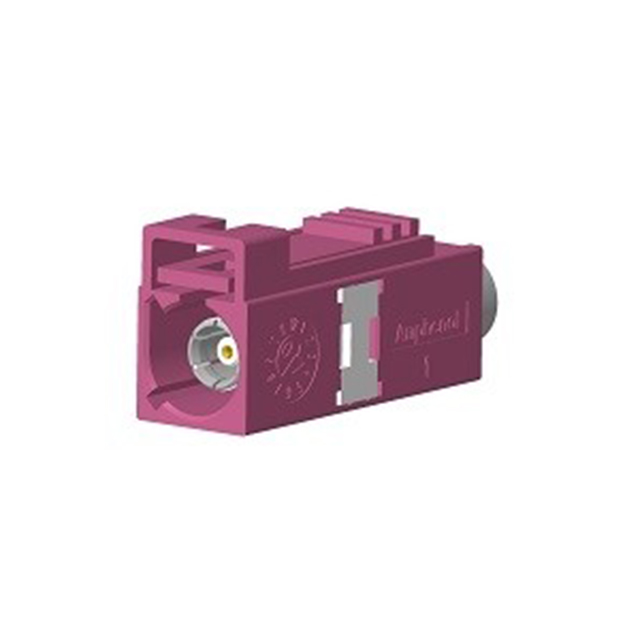

FA1-NHSJ-C04-0

Active

AMPHENOL RF

CONN FAKRA JACK STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN FAKRA JACK STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	FA1-NHSJ-C04-0

Body Finish	Nickel
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Latch Lock
Features	Code H
Frequency - Max [Max]	4 GHz
Housing Color	Violet, Heather
Impedance	50 Ohms
Includes	1 Housing, 1 Contact, 1 Ferrule, 1 Connector, 1 Locking Clip
Insertion Loss	0.3 dB
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

CONN FAKRA JACK STR 50 OHM CRIMP

Part	Connector Style	Fastening Type	Shield Termination	Frequency - Max [Max]	Dielectric Material	Center Contact Material	Connector Type	Body Material	Number of Ports	Mounting Type	Contact Termination	Impedance	Features	Center Contact Plating	Insertion Loss	Housing Color	Cable Group	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Includes
AMPHENOL RF FA1-NHSJ-C04-0	Fakra, SMB	Latch Lock	Crimp	4 GHz	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Female Socket, Jack	Brass	1	Free Hanging (In-Line)	Crimp	50 Ohms	Code H	Gold	0.3 dB	Heather, Violet	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	Nickel	-40 °C	115 °C	1 Connector, 1 Contact, 1 Ferrule, 1 Housing, 1 Locking Clip

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMB, Fakra Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
