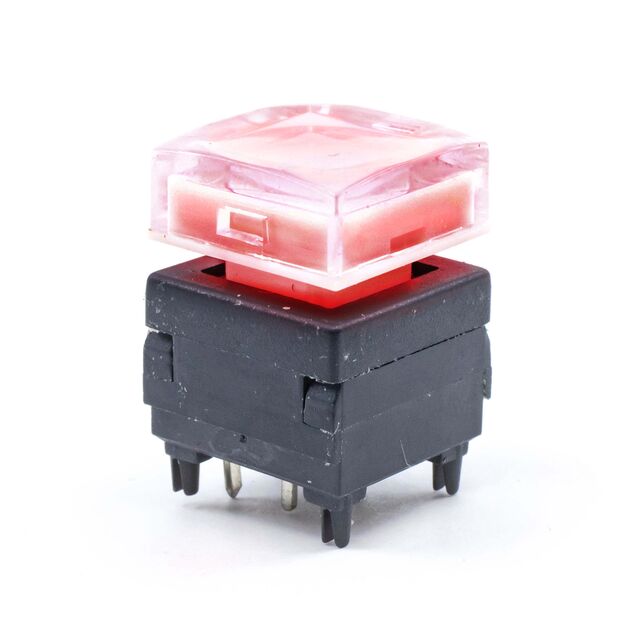

LP6OA1ASRGB

Active

E-Switch

SWITCH PUSH SPST-NO 12MA 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSH SPST-NO 12MA 12V

Technical Specifications

Parameters and characteristics for this part

Specification	LP6OA1ASRGB

Actuator Type	Button, Square
Circuit	SPST-NO
Color - Actuator/Cap	Clear
Current Rating (Amps)	12 mA
Electrical Life	200000 Cycles
Illumination Type, Color	Red, LED, Blue, Green
Illumination Voltage (Nominal)	1.7 VDC, 1.8 VDC, 2.7 VDC
Mechanical Life	200000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - DC	12 V

Part	Mounting Type	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Actuator Type	Illumination Voltage (Nominal)	Switch Function	Illumination Type, Color	Mechanical Life	Circuit	Voltage Rating - DC	Color - Actuator/Cap	Type	Current Rating (Amps)	Electrical Life	Illumination Type, Color [custom]	Illumination Type, Color [custom]
E-Switch LP6OA1ASRW	Through Hole	No Marking	-20 C	70 °C	PC Pin	Button Square	1.95 VDC 3.5 VDC	Off-Mom	LED Red/White	200000 Cycles	SPST-NO	12 V	Clear	Illuminated Standard	12 mA	200000 Cycles
E-Switch LP6OA1ASRGB	Through Hole		-20 C	70 °C	PC Pin	Button Square	1.7 VDC 1.8 VDC 2.7 VDC	Off-Mom	Blue Green LED Red	200000 Cycles	SPST-NO	12 V	Clear	Illuminated Standard	12 mA	200000 Cycles
E-Switch LP6OA1ASYB	Through Hole	No Marking	-20 C	70 °C	PC Pin	Button Square	1.95 VDC 3.3 VDC	Off-Mom	Blue LED Yellow	200000 Cycles	SPST-NO	12 V	Clear	Illuminated Standard	12 mA	200000 Cycles
E-Switch LP6OA1ASWW	Through Hole	No Marking	-20 C	70 °C	PC Pin	Button Square	3.5 VDC	Off-Mom		200000 Cycles	SPST-NO	12 V	Clear	Illuminated Standard	12 mA	200000 Cycles	LED	White/White
E-Switch LP6OA1ASRY	Through Hole	No Marking	-20 C	70 °C	PC Pin	Button Square	1.95 VDC	Off-Mom	LED Red/Yellow	200000 Cycles	SPST-NO	12 V	Clear	Illuminated Standard	12 mA	200000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 7.67

General part information

Pushbutton Switch SPST-NO Standard, Illuminated Through Hole

Technical documentation and resources

No documents available
