ActiveTE Connectivity AMP Connectors
CEM-3.0
Deep-Dive with AI
Search across all available documentation for this part.
T2030001030-000
ActiveTE Connectivity AMP Connectors
CEM-3.0
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T2030001030-000 | T203 Series |
|---|---|---|
| Color | - | Gray |
| Connector Type | - | Insert without Contacts |
| Contact Finish | Silver | Silver, Gold |
| Contact Finish Thickness | 2 µm | 0.75 - 2 µm |
| Contact Finish Thickness | 78.7 µin | 29.5 - 78.7 µin |
| Contact Termination | Crimp | Crimp |
| Contact Type | - | DDM, CDM, DDF, CDF, DD, CD |
| Current Rating (Amps) | - | 10 A |
| Gender | - | Male, Female |
| Housing Material | - | Polycarbonate (PC) |
| Material Flammability Rating | - | UL94 V-0 |
| Number of Positions | - | 108+Ground, 16+Ground, 42+Ground |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Pin or Socket | Pin | Pin, Socket |
| Size | - | H6B, H24B, H16B, H10B |
| Termination Style | - | Crimp |
| Voltage Rating | - | 250 VDC |
| Wire Gauge | 12 AWG | 12 - 20 AWG |
| Wire Gauge | - | 22 AWG |
| Wire Gauge | - | 26 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.26 | |
| 10 | $ 0.22 | |||
| 100 | $ 0.20 | |||
| 1000 | $ 0.14 | |||
| 5000 | $ 0.13 | |||
| 10000 | $ 0.11 | |||
T203 Series
INSERT MALE 24POS+1GND HDD-024-M
| Part | Contact Type | Gender | Housing Material | Size | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Material Flammability Rating | Current Rating (Amps) | Voltage Rating | Number of Positions | Contact Termination | Contact Finish | Wire Gauge | Pin or Socket | Contact Finish Thickness | Contact Finish Thickness | Wire Gauge [Min] | Wire Gauge [Max] | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T2030242101-000 | CDM, DDM | Male | Polycarbonate (PC) | H6B | Crimp | 125 °C | -40 °C | Insert without Contacts | UL94 V-0 | 10 A | 250 VDC | ||||||||||
TE Connectivity AMP Connectors T2031082101-000 | CDM, DDM | Male | Polycarbonate (PC) | H24B | Crimp | 125 °C | -40 °C | Insert without Contacts | UL94 V-0 | 10 A | 250 VDC | 108+Ground | |||||||||
TE Connectivity AMP Connectors T2032162101-000 | CDM, DDM | Male | Polycarbonate (PC) | H24B | Crimp | 125 °C | -40 °C | Insert without Contacts | UL94 V-0 | 10 A | 250 VDC | 108+Ground | |||||||||
TE Connectivity AMP Connectors T2030243201-000 | Female | Polycarbonate (PC) | H6B | Crimp | 125 °C | -40 °C | Insert without Contacts | UL94 V-0 | 10 A | 250 VDC | |||||||||||
TE Connectivity AMP Connectors T2030001025-000 | Crimp | Silver | 13.5 AWG | Pin | |||||||||||||||||
TE Connectivity AMP Connectors T2030011015-000 | Crimp | Gold | 16 AWG | Pin | 0.75 µm | 29.5 µin | |||||||||||||||
TE Connectivity AMP Connectors T2030002040-000 | Crimp | Silver | 12 AWG | Socket | 2 µm | 78.7 µin | |||||||||||||||
TE Connectivity AMP Connectors T2030012015-000 | Crimp | Gold | 16 AWG | Socket | 0.75 µm | 29.5 µin | |||||||||||||||
TE Connectivity AMP Connectors T2030002002-000 | Crimp | Silver | Socket | 2 µm | 78.7 µin | 22 AWG | 26 AWG | ||||||||||||||
TE Connectivity AMP Connectors T2030011010-000 | Crimp | Gold | 18 AWG | Pin | 0.75 µm | 29.5 µin | |||||||||||||||
TE Connectivity AMP Connectors T2030001030-000 | Crimp | Silver | 12 AWG | Pin | 2 µm | 78.7 µin | |||||||||||||||
TE Connectivity AMP Connectors T2030012005-000 | Crimp | Gold | 20 AWG | Socket | 0.75 µm | 29.5 µin | |||||||||||||||
TE Connectivity AMP Connectors T2030001005-000 | Crimp | Silver | 20 AWG | Pin | |||||||||||||||||
TE Connectivity AMP Connectors T2030011025-000 | Crimp | Gold | 13.5 AWG | Pin | 0.75 µm | 29.5 µin | |||||||||||||||
TE Connectivity AMP Connectors T2030002008-000 | Crimp | Silver | 18 AWG | Socket | |||||||||||||||||
TE Connectivity AMP Connectors T2030011040-000 | Crimp | Gold | 12 AWG | Pin | 0.75 µm | 29.5 µin | |||||||||||||||
TE Connectivity AMP Connectors T2031442201-000 | CDF, DDF | Female | Polycarbonate (PC) | H16B | Crimp | 125 °C | -40 °C | Insert without Contacts | UL94 V-0 | 10 A | 250 VDC | ||||||||||
TE Connectivity AMP Connectors T2030002015-000 | Crimp | Silver | 16 AWG | Socket | |||||||||||||||||
TE Connectivity AMP Connectors T2030011002-000 | Crimp | Gold | Pin | 0.75 µm | 29.5 µin | 22 AWG | 26 AWG | ||||||||||||||
TE Connectivity AMP Connectors T2030012010-000 | Crimp | Gold | 18 AWG | Socket | 0.75 µm | 29.5 µin | |||||||||||||||
TE Connectivity AMP Connectors T2030162101-000 | CDM, DDM | Male | Polycarbonate (PC) | H6B | Crimp | 125 °C | -40 °C | UL94 V-0 | 10 A | 250 VDC | 16+Ground | ||||||||||
TE Connectivity AMP Connectors T2030012008-000 | Crimp | Gold | 18 AWG | Socket | 0.75 µm | 29.5 µin | |||||||||||||||
TE Connectivity AMP Connectors T2030011008-000 | Crimp | Gold | 18 AWG | Pin | 0.75 µm | 29.5 µin | |||||||||||||||
TE Connectivity AMP Connectors T2030242201-000 | CDF, DDF | Female | Polycarbonate (PC) | H6B | Crimp | 125 °C | -40 °C | Insert without Contacts | UL94 V-0 | 10 A | 250 VDC | ||||||||||
TE Connectivity AMP Connectors T2030002010-000 | Crimp | Silver | 18 AWG | Socket | |||||||||||||||||
TE Connectivity AMP Connectors T2030002025-000 | Crimp | Silver | 13.5 AWG | Socket | |||||||||||||||||
TE Connectivity AMP Connectors T2030422201-000 | CD, DD | Female | Polycarbonate (PC) | H10B | Crimp | 125 °C | -40 °C | Insert without Contacts | UL94 V-0 | 10 A | 250 VDC | 42+Ground | Gray | ||||||||
TE Connectivity AMP Connectors T2030423201-000 | Female | Polycarbonate (PC) | H10B | Crimp | 125 °C | -40 °C | Insert without Contacts | UL94 V-0 | 10 A | 250 VDC | 42+Ground | ||||||||||
TE Connectivity AMP Connectors T2030002030-000 | Crimp | Silver | 12 AWG | Socket | 2 µm | 78.7 µin | |||||||||||||||
TE Connectivity AMP Connectors T2032162201-000 | CDF, DDF | Female | Polycarbonate (PC) | H24B | Crimp | 125 °C | -40 °C | Insert without Contacts | UL94 V-0 | 10 A | 250 VDC | 108+Ground |
Description
General part information
T203 Series

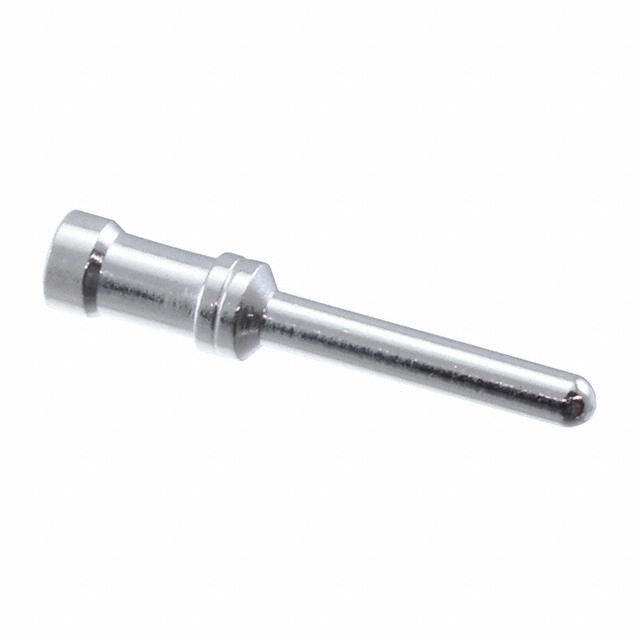

Contact Crimp Pin 12 AWG Silver
Documents
Technical documentation and resources
