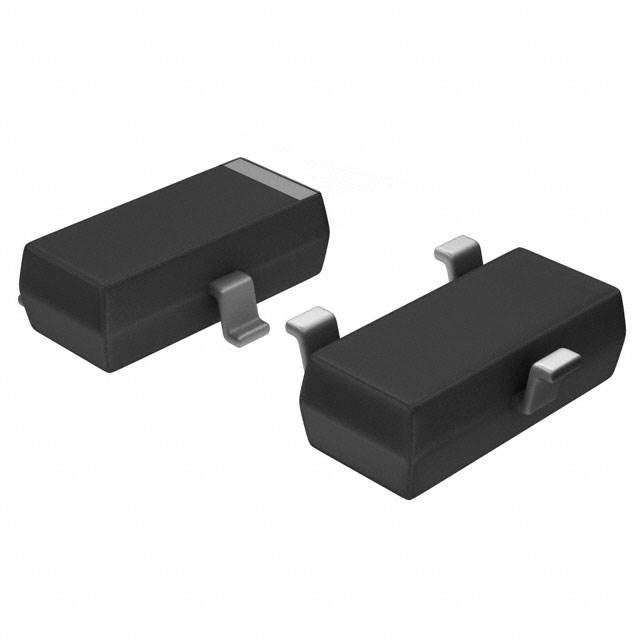

CDSOT23-T08C-Q

Active

Bourns Inc.

TVS DIODE 8VWM 16.9VC SOT233

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CDSOT23-T08C-Q

Active

Bourns Inc.

TVS DIODE 8VWM 16.9VC SOT233

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CDSOT23-T08C-Q

Applications	Telecom
Bidirectional Channels [custom]	1
Capacitance @ Frequency	150 pF
Current - Peak Pulse (10/1000µs)	34 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SOT-23-3, TO-236-3, SC-59
Power Line Protection	False
Qualification	AEC-Q101
Supplier Device Package	SOT-23-3
Type	Zener
Voltage - Breakdown (Min) [Min]	8.5 V
Voltage - Clamping (Max) @ Ipp [Max]	16.9 V
Voltage - Reverse Standoff (Typ)	8 V

CDSOT23 Series

Part	Power - Peak Pulse	Supplier Device Package	Type	Applications	Capacitance @ Frequency	Bidirectional Channels [custom]	Current - Peak Pulse (10/1000µs)	Voltage - Reverse Standoff (Typ)	Voltage - Breakdown (Min) [Min]	Package / Case	Mounting Type	Voltage - Clamping (Max) @ Ipp [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Unidirectional Channels [custom]	Grade	Qualification	Current - Peak Pulse (10/1000çs)	Voltage - Clamping (Max) @ Ipp
Bourns Inc. CDSOT23-T05C	500 W	SOT-23-3	Zener	General Purpose	210 pF	1	42 A	5 V	6 V	SC-59 SOT-23-3 TO-236-3	Surface Mount	13.5 V	-55 °C	150 °C
Bourns Inc. CDSOT23-T15	500 W	SOT-23-3	Zener	General Purpose	100 pF		17 A	15 V	16.7 V	SC-59 SOT-23-3 TO-236-3	Surface Mount		-55 °C	150 °C	1
Bourns Inc. CDSOT23-T24LC	500 W	SOT-23-3	Zener	General Purpose	5 pF	1	12 A	24 V	26.7 V	SC-59 SOT-23-3 TO-236-3	Surface Mount	49 V	-55 °C	150 °C
Bourns Inc. CDSOT23-T08	500 W	SOT-23-3	Zener	General Purpose	250 pF		34 A	8 V	8.5 V	SC-59 SOT-23-3 TO-236-3	Surface Mount	16.9 V	-55 °C	150 °C	1
Bourns Inc. CDSOT23-T08C-Q		SOT-23-3	Zener	Telecom	150 pF	1	34 A	8 V	8.5 V	SC-59 SOT-23-3 TO-236-3	Surface Mount	16.9 V	-55 °C	150 °C		Automotive	AEC-Q101
Bourns Inc. CDSOT23-T03C	500 W	SOT-23-3	Zener	General Purpose		1		3.3 V	4 V	SC-59 SOT-23-3 TO-236-3	Surface Mount		-55 °C	150 °C				43 A	10.9 V
Bourns Inc. CDSOT23-T36LC	500 W	SOT-23-3	Zener	General Purpose	5 pF		9 A	36 V	40 V	SC-59 SOT-23-3 TO-236-3	Surface Mount	76.8 V	-55 °C	150 °C
Bourns Inc. CDSOT23-T15C-Q		SOT-23-3	Zener	Telecom	60 pF	1	15 A	15 V	16.7 V	SC-59 SOT-23-3 TO-236-3	Surface Mount	25 V	-55 °C	150 °C		Automotive	AEC-Q101
Bourns Inc. CDSOT23-T08LC	500 W	SOT-23-3	Zener	General Purpose	5 pF	1	34 A	8 V	8.5 V	SC-59 SOT-23-3 TO-236-3	Surface Mount	16.9 V	-55 °C	150 °C
Bourns Inc. CDSOT23-SLVU2.8	600 W	SOT-23-3	Zener	General Purpose	3 pF		30 A	2.8 V	3 V	SC-59 SOT-23-3 TO-236-3	Surface Mount	21 V	-55 °C	150 °C	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.37
		10	$ 0.32
		100	$ 0.22
		500	$ 0.18
	Digi-Reel®	1	$ 0.37
		10	$ 0.32
		100	$ 0.22
		500	$ 0.18
	Tape & Reel (TR)	3000	$ 0.15

Description

General part information

CDSOT23 Series

16.9V Clamp 34A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-3
