52-473.036

Active

EAO

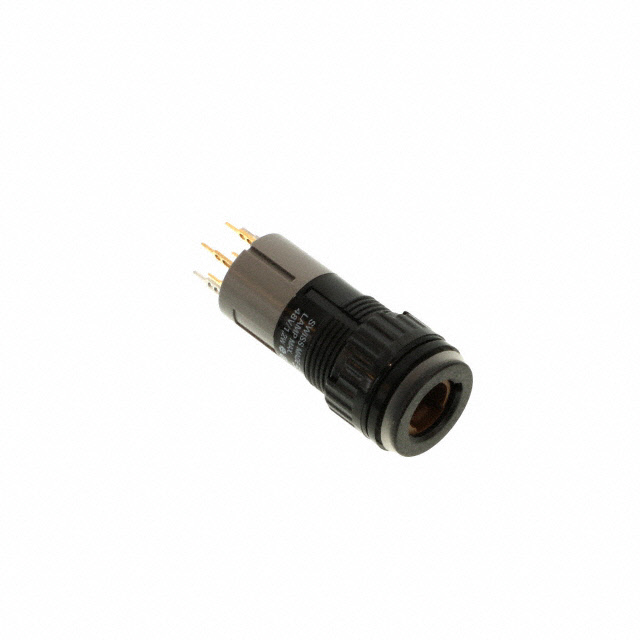

SWITCH SELECT 2P DPST 100MA 42V

Search across all available documentation for this part.

Active

EAO

SWITCH SELECT 2P DPST 100MA 42V

Technical Specifications

Parameters and characteristics for this part

Specification	52-473.036

Circuit	DPST-NO/NC
Current Rating (Amps)	100 mA
Illumination	Illuminated
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Number of Positions	2
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm
Switch Function	On-Off, Off-On
Termination Style	PC Pin, Solder Lug
Type	Standard
Voltage Rating - AC	42 V
Voltage Rating - DC	42 V

SWITCH SELECT 2P DPST 100MA 42V

Part	Ingress Protection	Illumination	Current Rating (Amps)	Number of Positions	Termination Style	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Mechanical Life	Type	Voltage Rating - AC	Switch Function
EAO 52-473.036	IP65 - Dust Tight, Water Resistant	Illuminated	100 mA	2	PC Pin, Solder Lug	DPST-NO/NC	55 °C	-25 °C	16.2 mm	42 V	1000000 Cycles	Standard	42 V	Off-On, On-Off

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Selector Switch 2 Position DPST-NO/NC 100mA (AC/DC) 42 V Panel Mount
